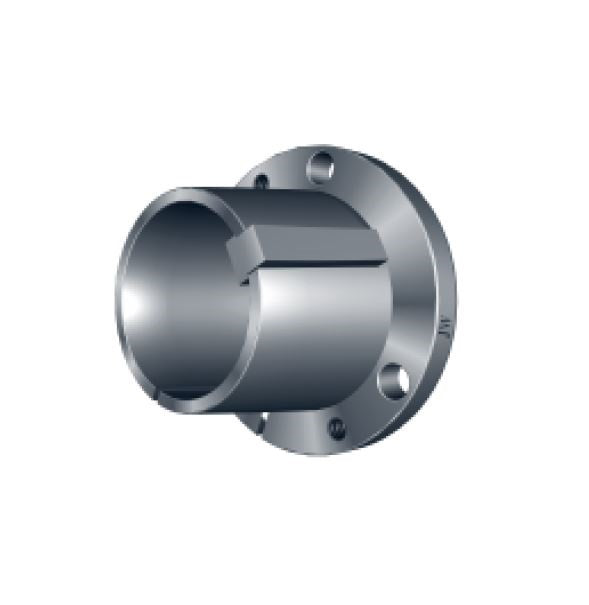

R1 Series Split Taper Bushing, 3-5/8 Bore

Item ID: R1 X 310
R1 Series Split Taper Bushing, 3-5/8 Bore

UPS SKU: 4903863170537
Bore: 3-5/8

Technical Specification

Part No.: R1
L: 2-7/8
T: 2-1/4
D Large End: 4
D small End: 3.875
OD: 5-3/8
D1: 4-5/8
W: 3/4
X: 2
R: 1/4
Bore Range Type 1: 1-1/8 to 2-13/16
Bore Range Type 2: 2-7/8 to 3-3/4
Cap Screw No.: : 3
Cap Screw Size: 3/8 x 1-1/4
Wrench Torque (lbs): 348
App. Wt. (lbs): 7.5
