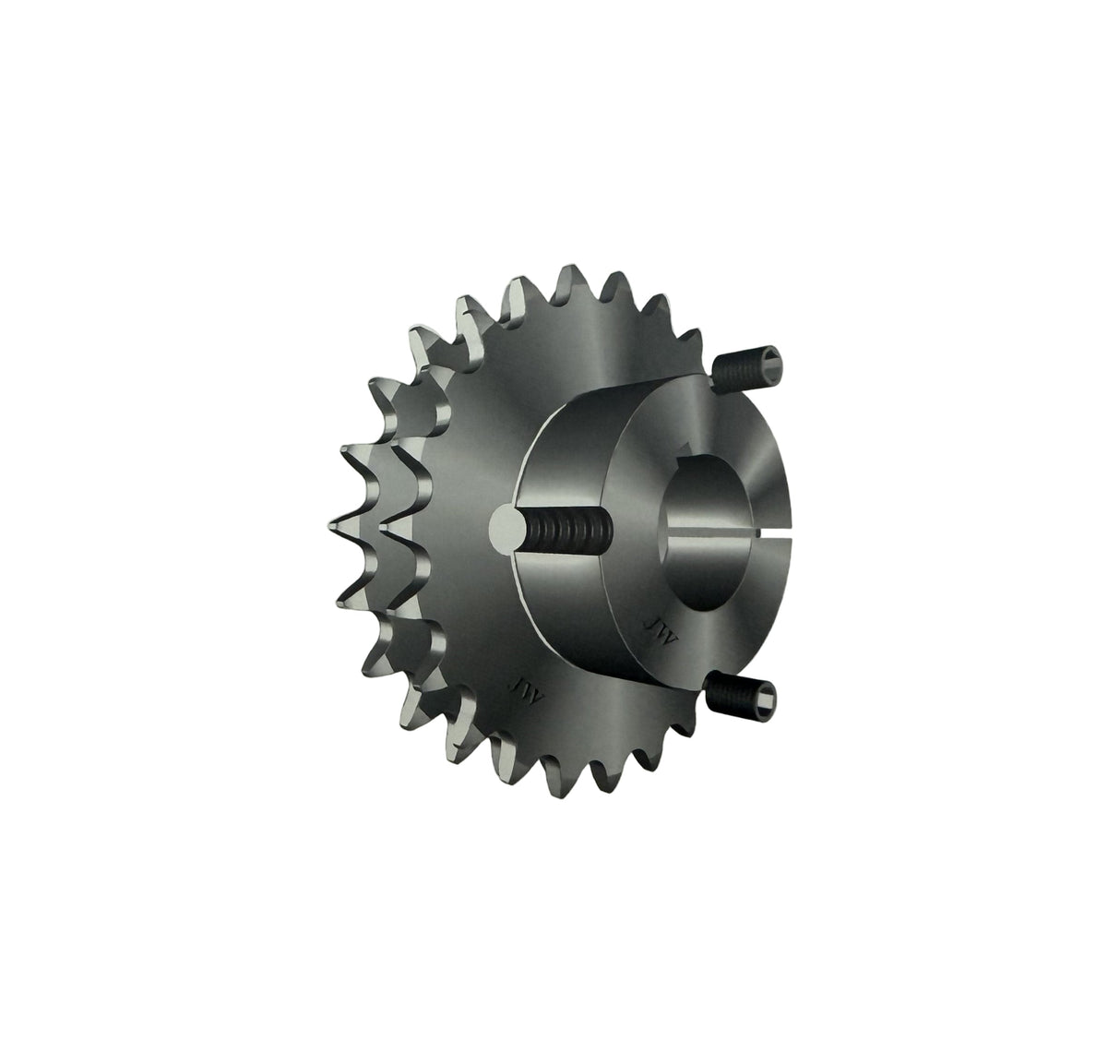

#80 Double Single Taper Bushed 20 Teeth

Item ID: DS80ATB20H
Double Single 80 Pitch, 3020 Bushing Taper Lock Sprocket, 20 Teeth hardened

UPS SKU:
Bore:

Technical Specification

Part No.: DS80ATB20H
Type: Double-Single Taper-Bushed
Pitch: DS80
Number of Teeth: 20

Bushing: 3020

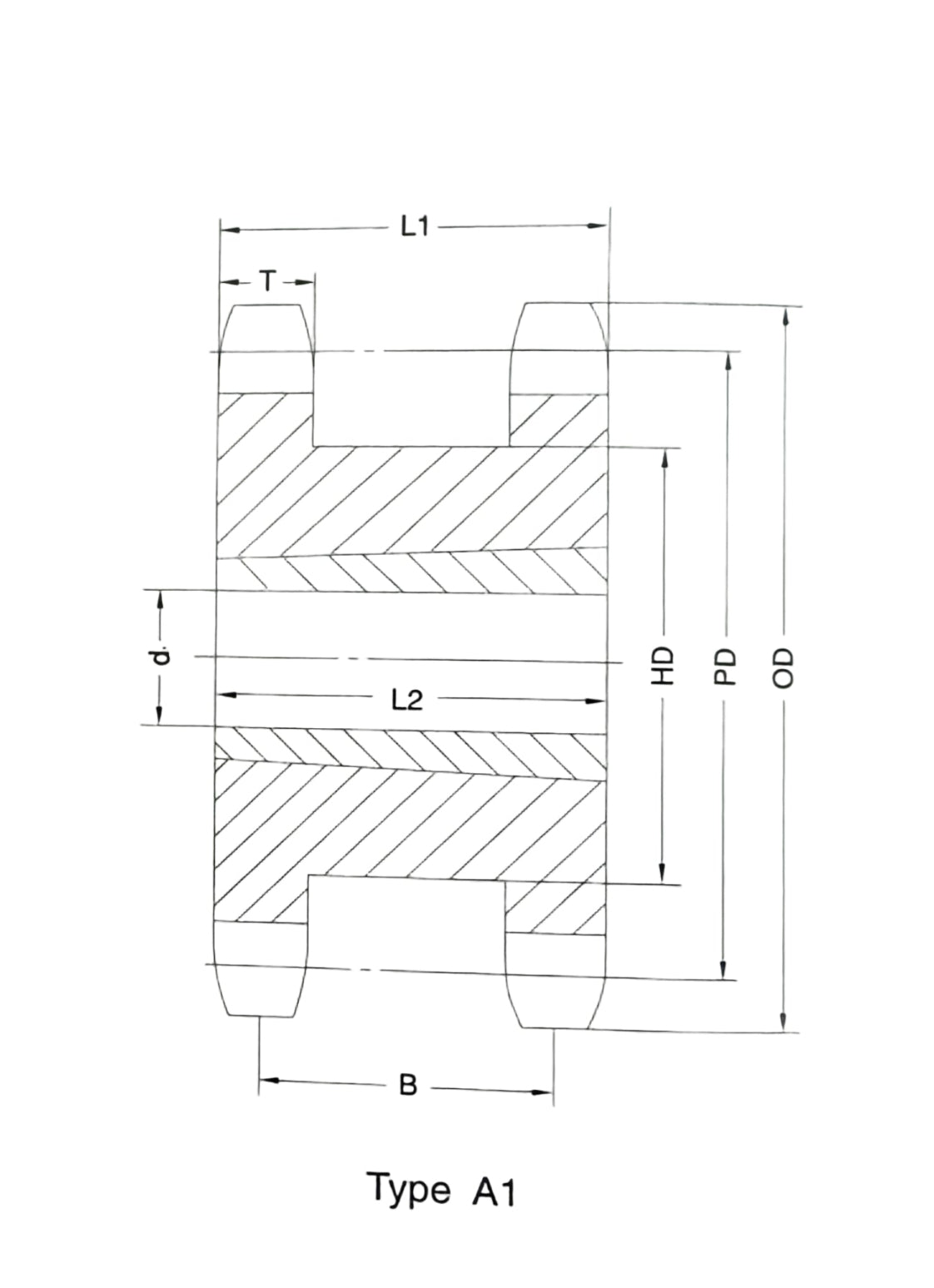

OD: 6.910
PD: 6.392
d min: 15/16
d max: 3
L1: 2-3/16,

L2: 2
B: 1-5/8
HD: 5-9/32
T: 0.575
App Wt (lbs): 10.0
