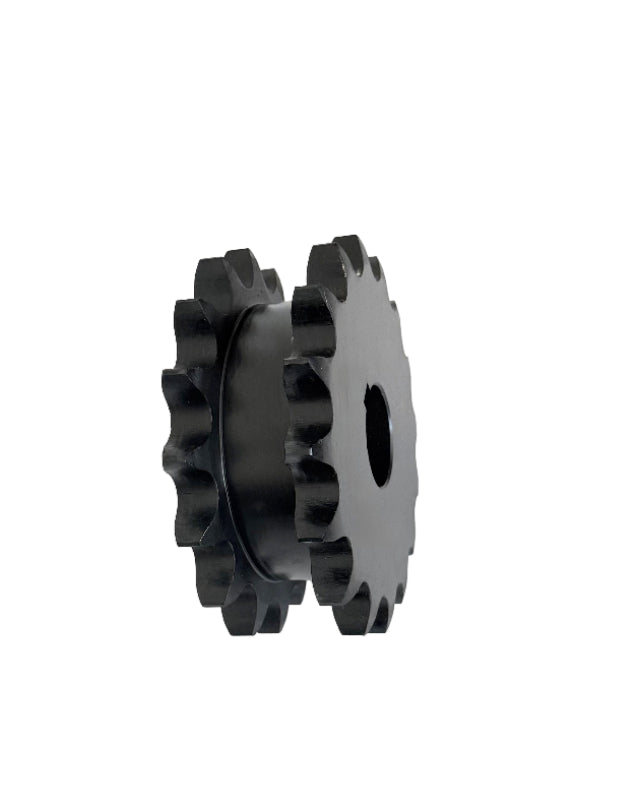

#80 Double Single, 15 Teeth, Type A, 2" Finished Bore, DS80A15H 2"

Item ID: DS80A15F200H
Double Single 80 Pitch, Type A, 15 Teeth hardened, 2" Bore, 1/2 x 1/4" Keyway, No Setscrews

UPS SKU:
Bore: 2"

Technical Specification

Part No.: DS80A15H 2"
Type: Double-Single Type A
Pitch: DS80
Number of Teeth: 15
OD: 5.300
PD: 4.810
d min: 1
d max: 2-3/8
L: 2-3/16
B: 1-5/8
HD: 3-13/16
T: 0.575
App Wt (lbs): 9.1
