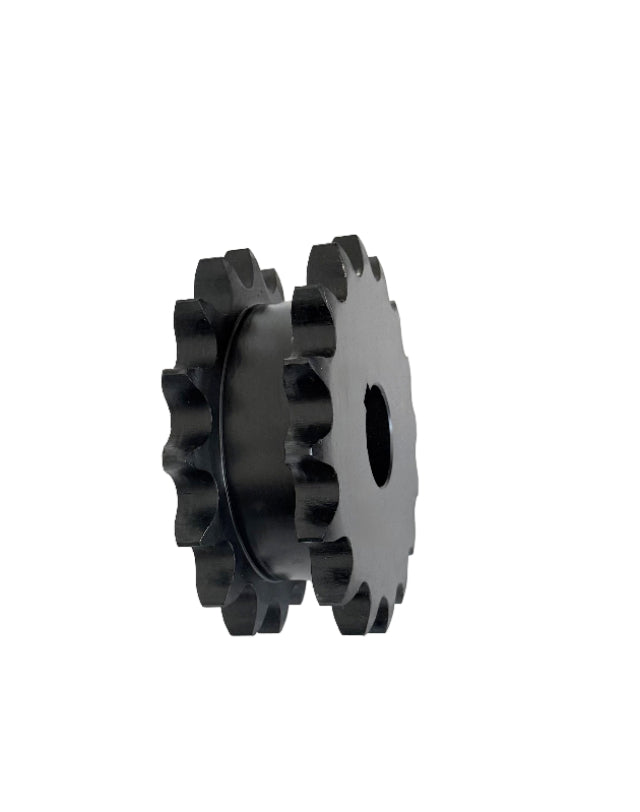

#80 Double Single, 15 Teeth, Type A, 2-1/4" Finished Bore, DS80A15H 2-1/4"

Item ID: DS80A15F204H
Double Single 80 Pitch, Type A, 15 Teeth hardened, 2-1/4" Bore, 1/2 x 1/4" Keyway, No Setscrews

UPS SKU: 4903863165281
Bore: 2-1/4"

Technical Specification

Part No.: DS80A15H 2-1/4"
Type: Double-Single Type A
Pitch: DS80
Number of Teeth: 15
OD: 5.300
PD: 4.810
d min: 1
d max: 2-3/8
L: 2-3/16
B: 1-5/8
HD: 3-13/16
T: 0.575
App Wt (lbs): 9.1
