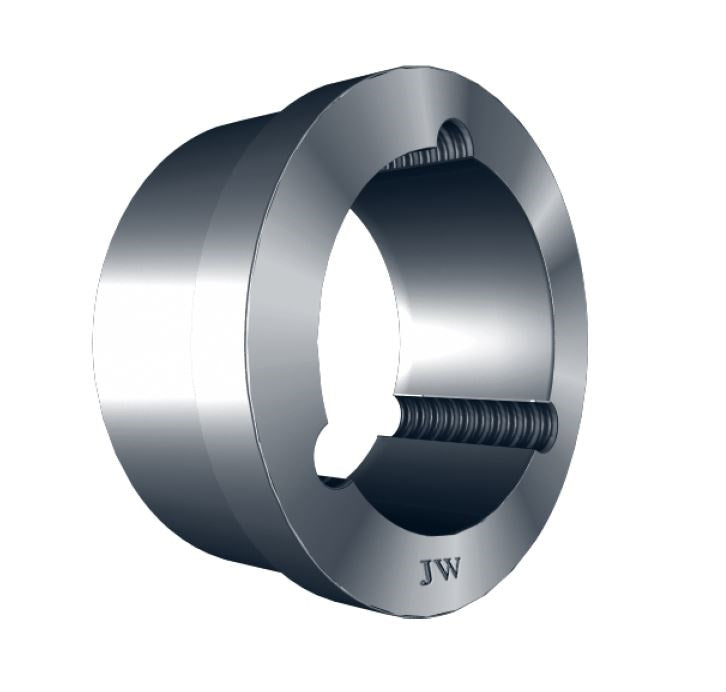

Taper-Bushed Type S16-4 Hub

Item ID: JWQ S16-4 HUB
Taper-Bushed Type S16-4 Hub

UPS SKU:
Bore:

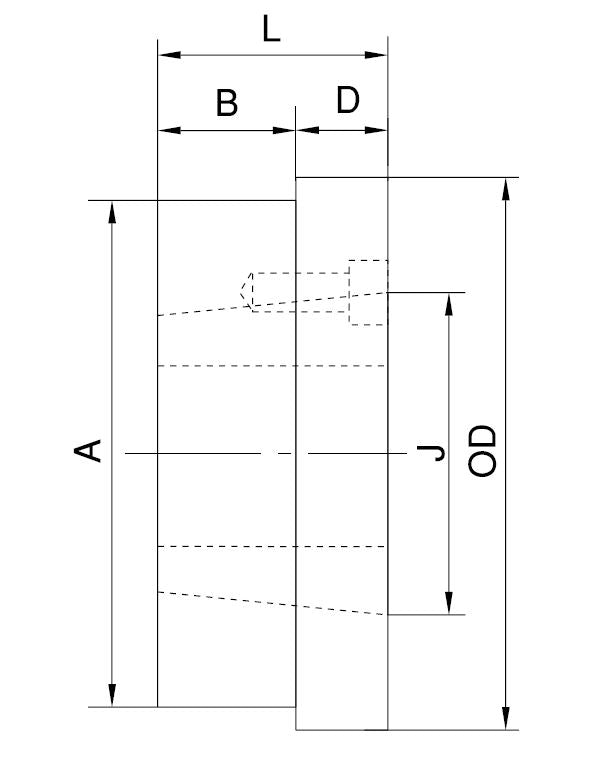

Technical Specification

Part No.: S16-4
Hole No: S16-4
Bushing No.: 1610
Max. Bore of Bushing: 1-5/8
OD: 3
L#: 1
B*: 0.275
D%: 0.725
A: 2-7/8&
J: 2-1/4
App. Wt. (lbs): 0.9
