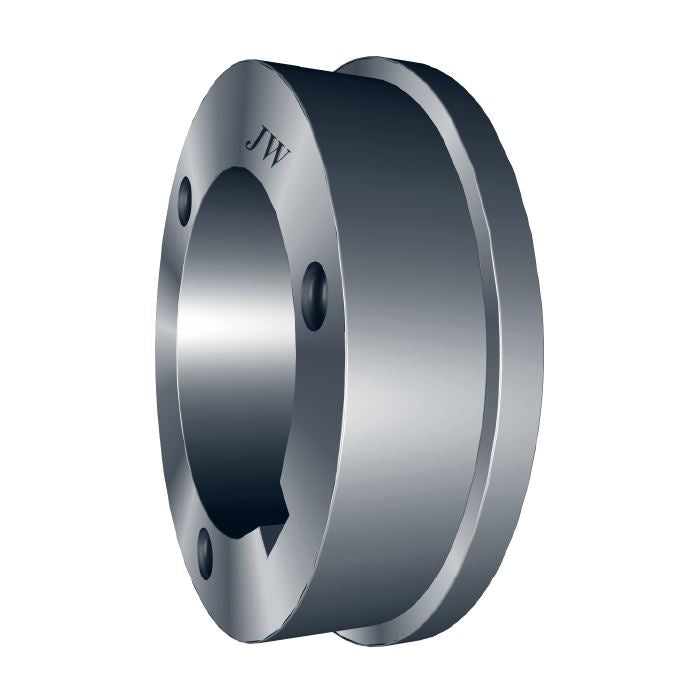

Split-Taper Bushed HR2 Hub

Item ID: JWQ HR2 HUB
Split-Taper Bushed HR2 Hub

UPS SKU:
Bore:

Technical Specification

Part No.: HR2
Hole No.: HR2

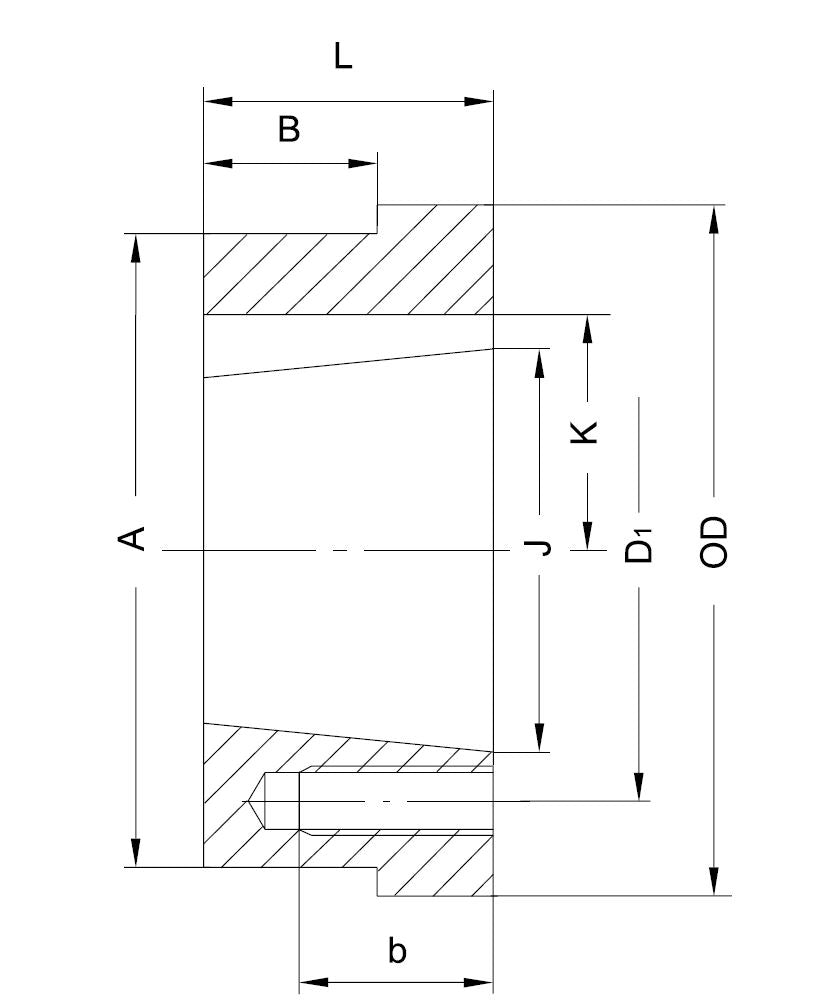

OD: 5-3/4
B: 1.600
J#: 4.000
A!: 5.625
K%: 2-3/16
D1: 4-5/8

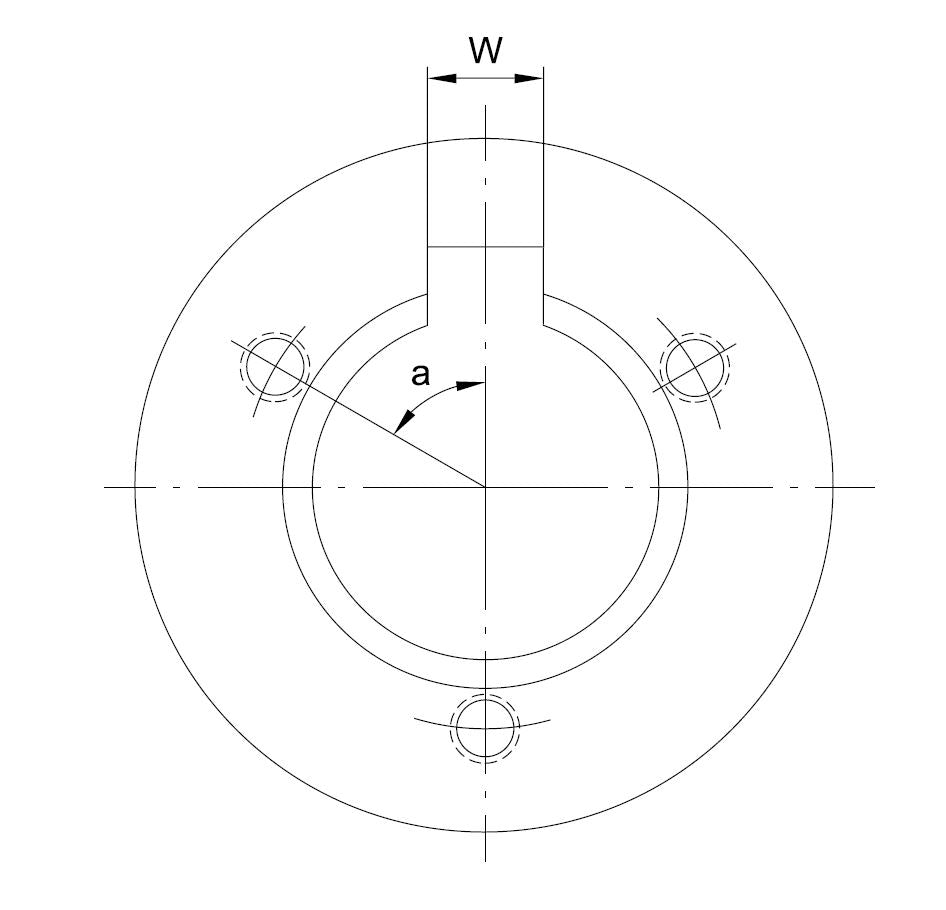

W: 3/4
L: 4
a: 60°
b: 1-1/8
Tapped Holes No.: 3
Tapped Holes Screws: 3/8-16
App. Wt. (lbs): 15.4
