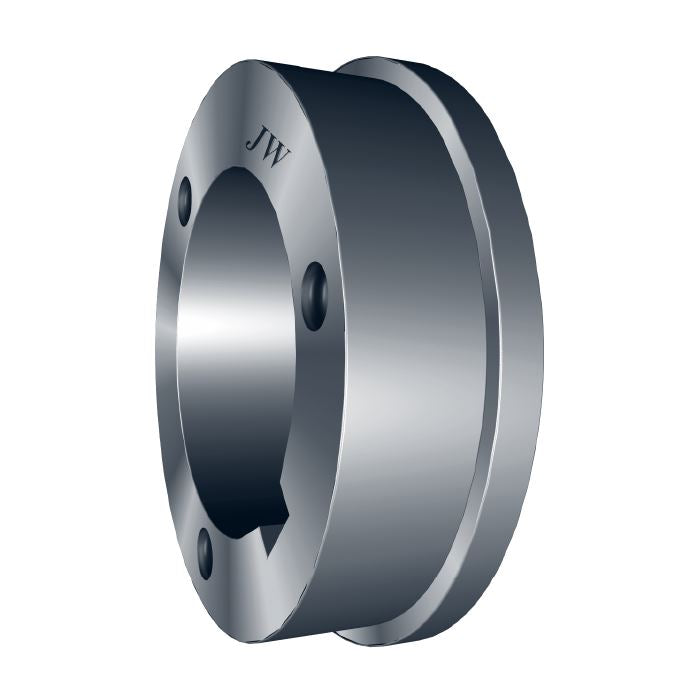

Split-Taper Bushed HP2 Hub

Item ID: JWQ HP2 HUB
Split-Taper Bushed HP2 Hub

UPS SKU:
Bore:

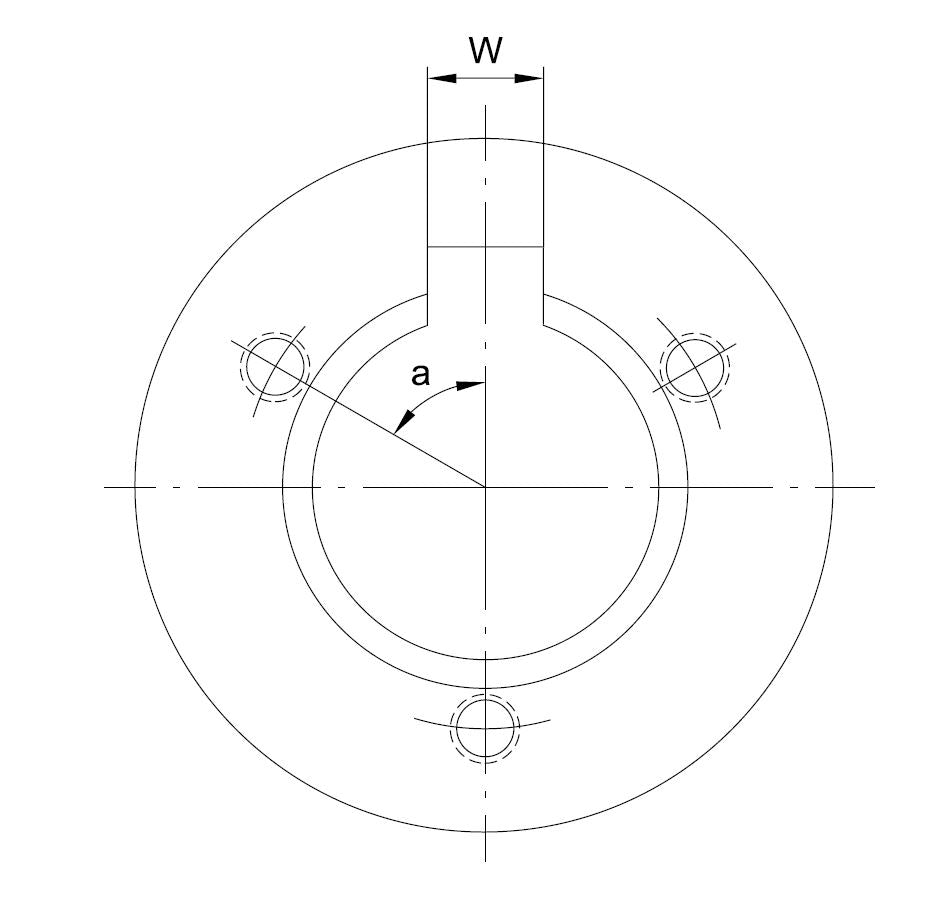

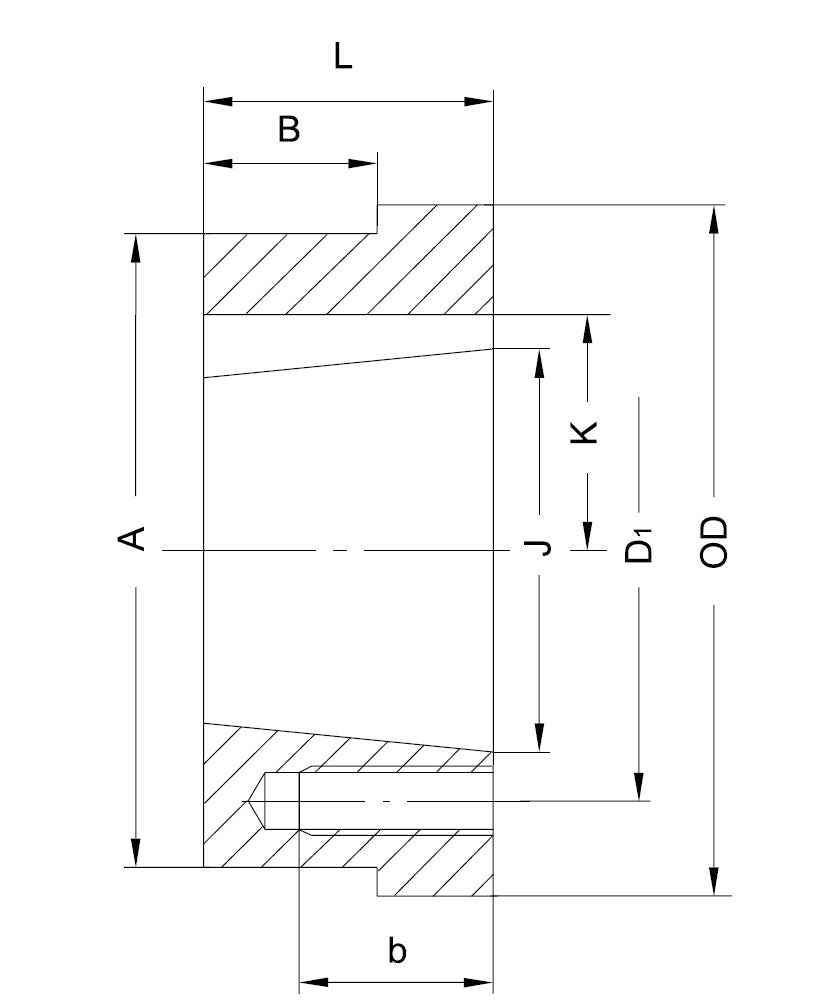

Technical Specification

Part No.: HP2
Hole No.: HP2
OD: 3
B: 1.100
J#: 1.938
A!: 2.875
K%: 1-3/32
D1: 2-7/16
W: 3/8
L: 2-5/16
a: 60°
b: 5/8
Tapped Holes No.: 3
Tapped Holes Screws: 5/16-18
App. Wt. (lbs): 2.5
