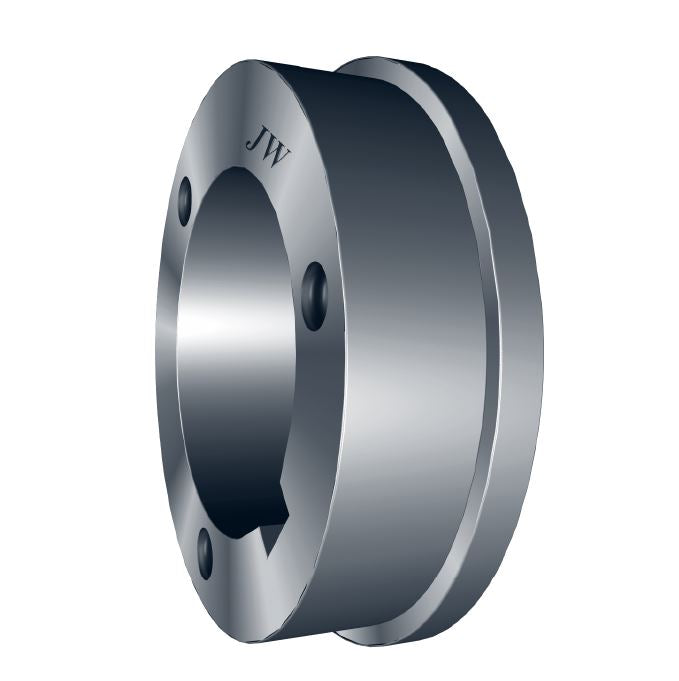

Split-Taper Bushed HCQ1 Hub

Item ID: JWQ HCQ1 HUB
Split-Taper Bushed HCQ1 Hub

UPS SKU:
Bore:

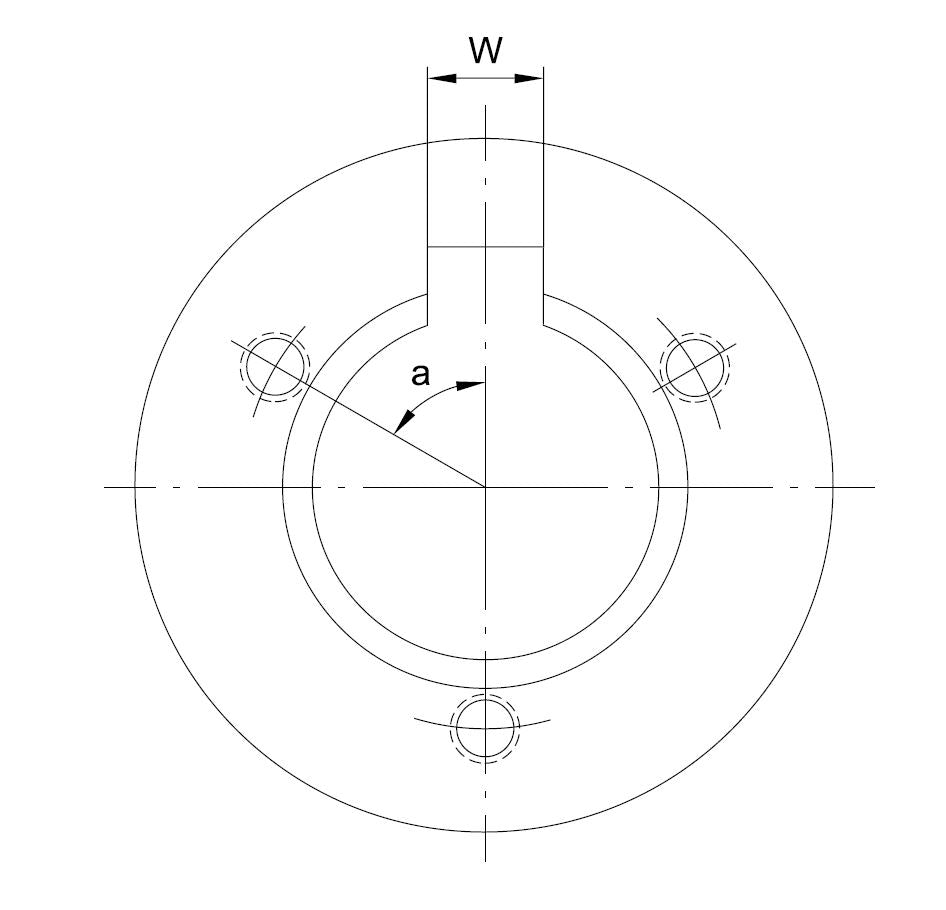

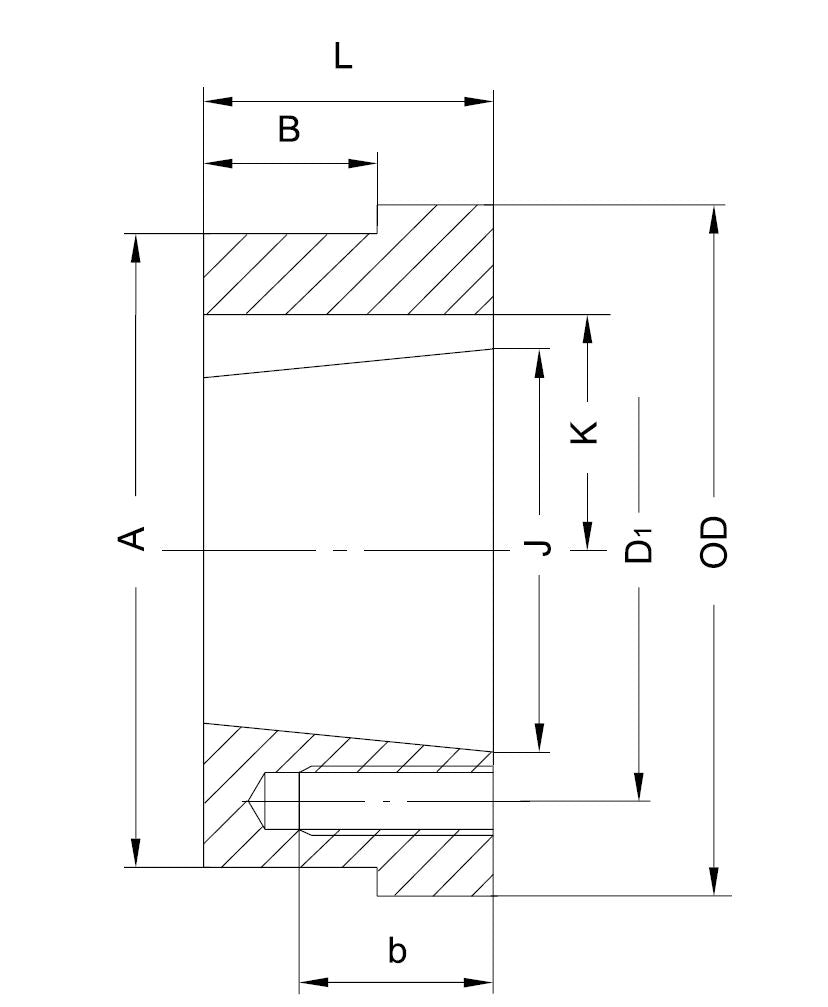

Technical Specification

Part No.: HCQ1
Hole No.: HCQ1
OD: 4-1/2
B: 1.250
J#: 2.875
A!: 4.375
K%: 1-9/16
D1: 3-3/8
W: 1/2
L: 1-3/4
a: 60°
b: 7/8
Tapped Holes No.: 3
Tapped Holes Screws: 3/8-16
App. Wt. (lbs): 4.4
