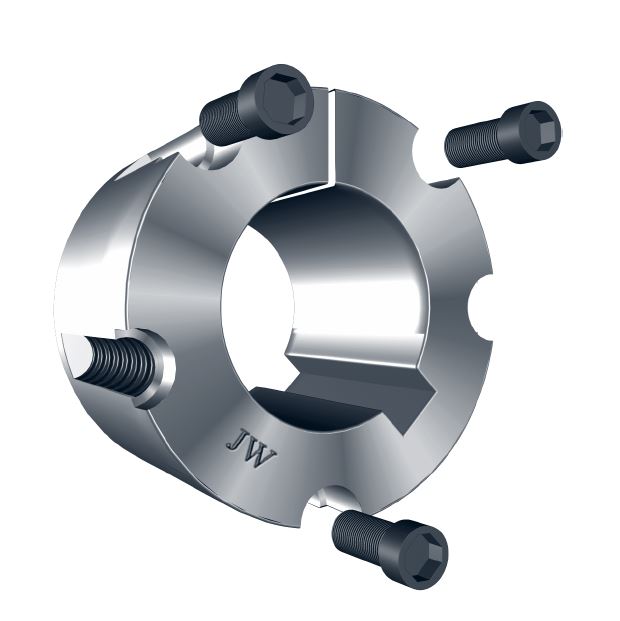

3535 Taper Lock Bushing 3-7/16 bore

Item ID: 3535 X 307
3535 Series Taper Lock Bushing, 3-7/16 Bore

UPS SKU:
Bore: 3-7/16

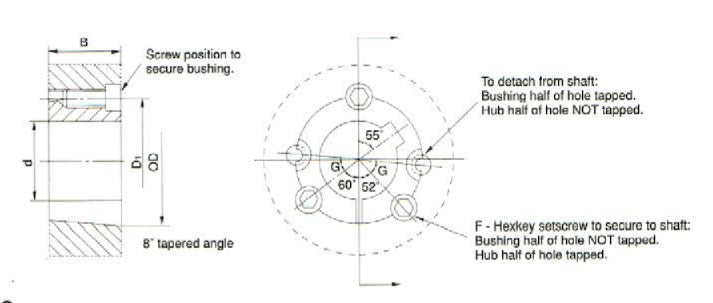

Technical Specification

Part No.: 3535
B: 3.5
OD: 5
min d: 1.188
max d: 3.938
D1: 4.83
F*: 1/2 X 1-1/2
G: 39°
App. Wt. (lbs): 11
