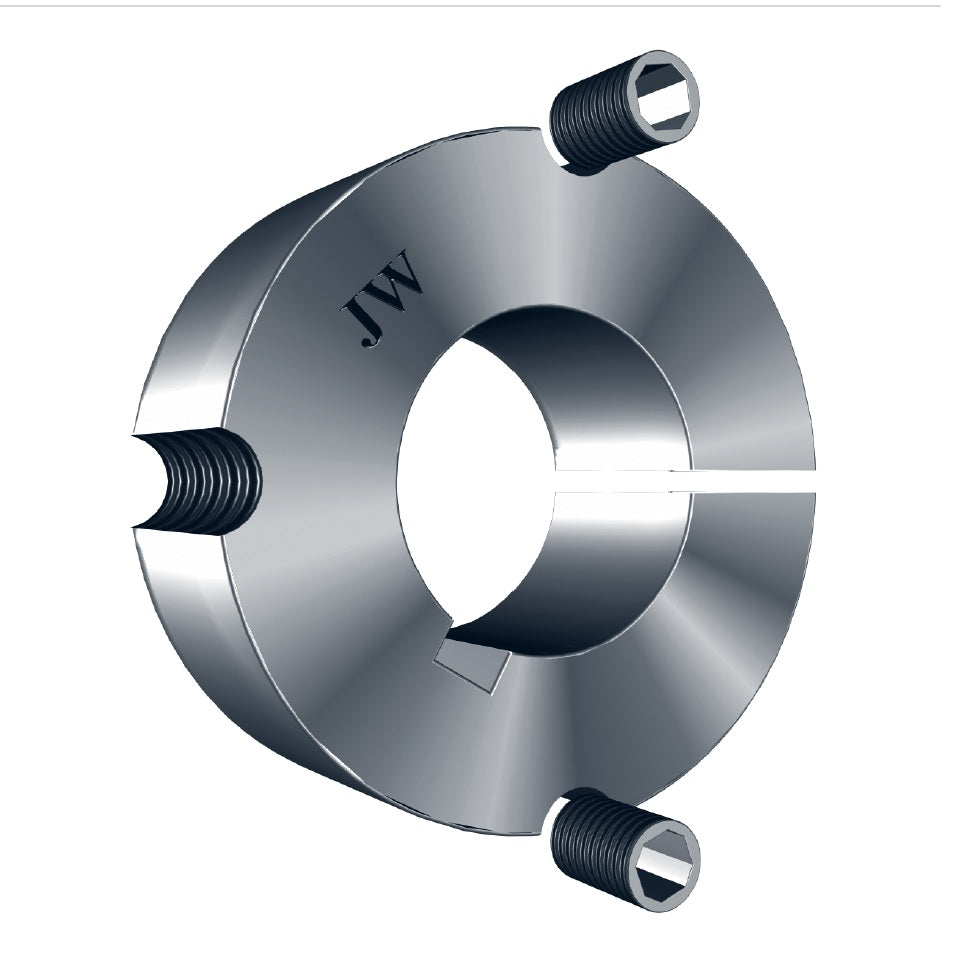

1008 Bushing 9/16in

Item ID: 1008 X 009
1008 Series Taper Lock Bushing, 9/16 Bore

UPS SKU: 4903863128033
Bore:9/16

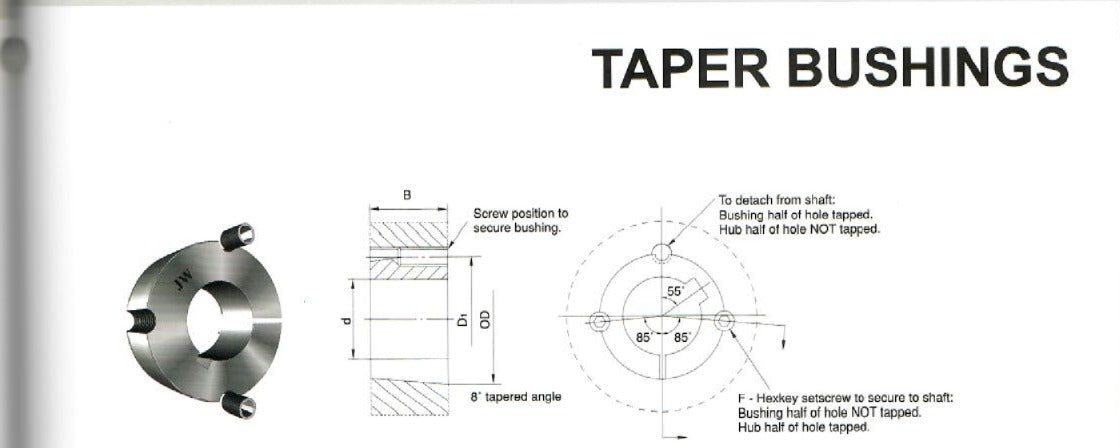

Technical Specification

Part No.: 1008
B: 0.875
OD: 1.386
min d: 0.5
max d: 1
D1: 1.328
F*: 1/4 X 1/2
App. Wt. (lbs): 0.2
