#40 Taper Bushed Sprocket 22 Teeth

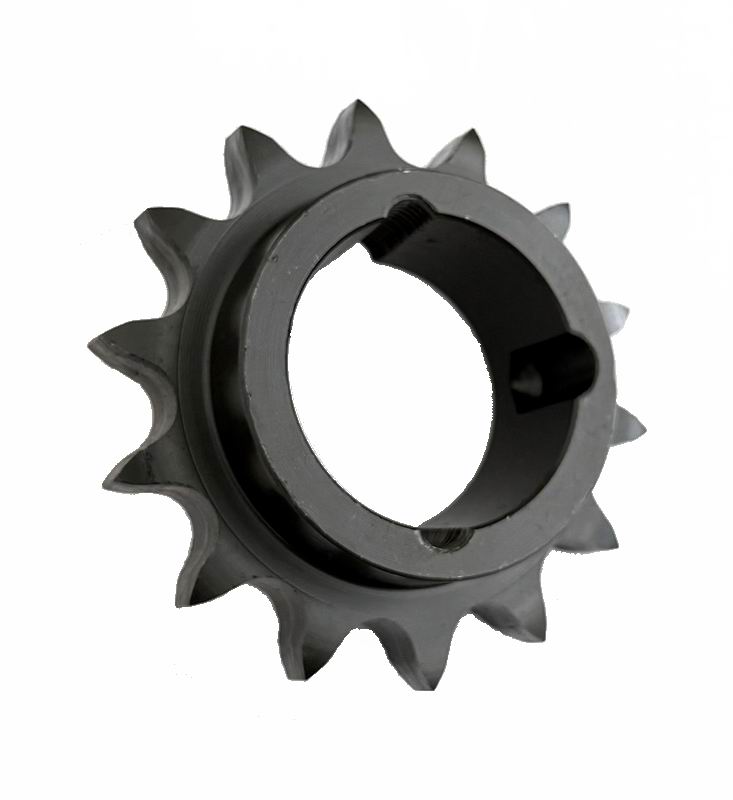

The product image is for illustration purposes only.

Item ID: 40BTL22HT
40 Pitch, 1610 Bushing Taper Bushed Sprocket, 22 Teeth Hardened

UPS SKU: 4903863143739
Bore:

Technical Specification

Part No.: 40BTB22H
Type: Single Taper-Bushed B
Teeth: 22
Bushing: 1610
OD: 3.778
PD: 3.513
max bore d: 1-5/8
HD: 2-25/32
L: 1
Sprocket Wt (lbs): 0.9
Bushing Wt (lbs): 0.9

$21.25
