#100 Taper Bushed Sprocket 22 Teeth

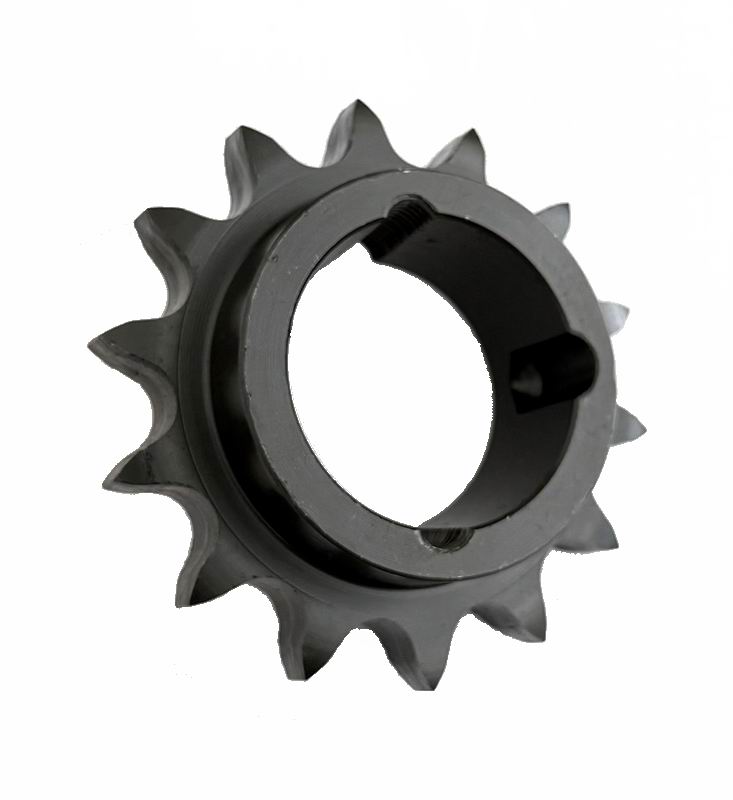

The product image is for illustration purposes only.

Item ID: 100BTL22HT
100 Pitch, 2517 Bushing Taper Bushed Sprocket, 22 Teeth Hardened

UPS SKU: 4903863130364
Bore:

Technical Specification

Part No.: 100BTB22H
Type: Single Taper-Bushed
Teeth: 22
Bushing: 2517
OD: 9.444
PD: 8.783
max bore d: 2-1/2
HD: 4-1/2
L: 1-3/4
Sprocket Wt (lbs): 11.0
Bushing Wt (lbs): 3.5

$117.34
