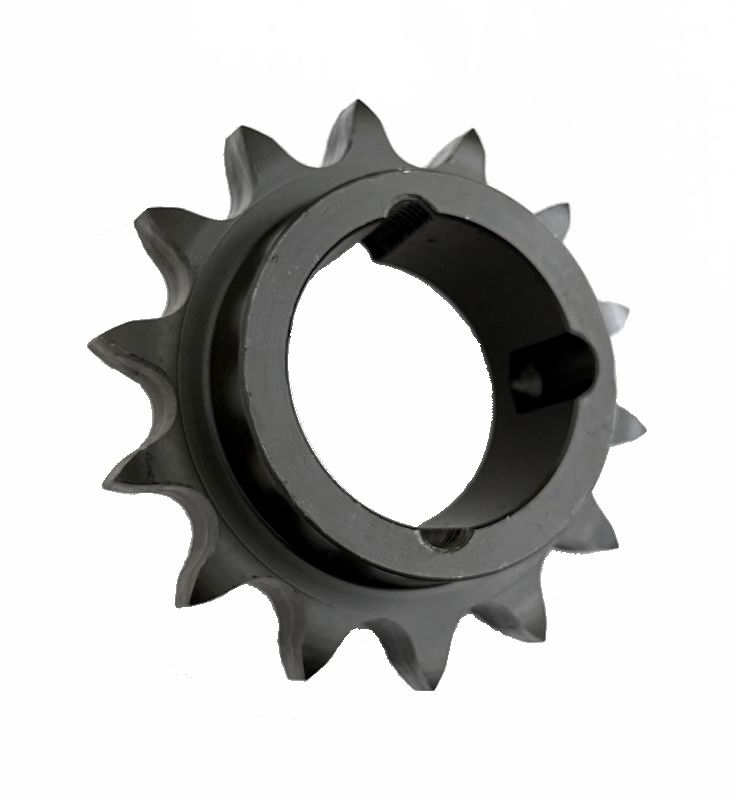

#100 Taper Bushed Sprocket 17 Teeth

Item ID: 100BTL17HT
100 Pitch, 2517 Bushing Taper Bushed Sprocket, 17 Teeth Hardened

UPS SKU: 4903863130319
Bore:

Technical Specification

Part No.: 100BTB17H
Type: Single Taper-Bushed
Teeth: 17
Bushing: 2517
OD: 7.437
PD: 6.803
max bore d: 2-1/2
HD: 4-1/2
L: 1-3/4
Sprocket Wt (lbs): 7.1
Bushing Wt (lbs): 3.5
