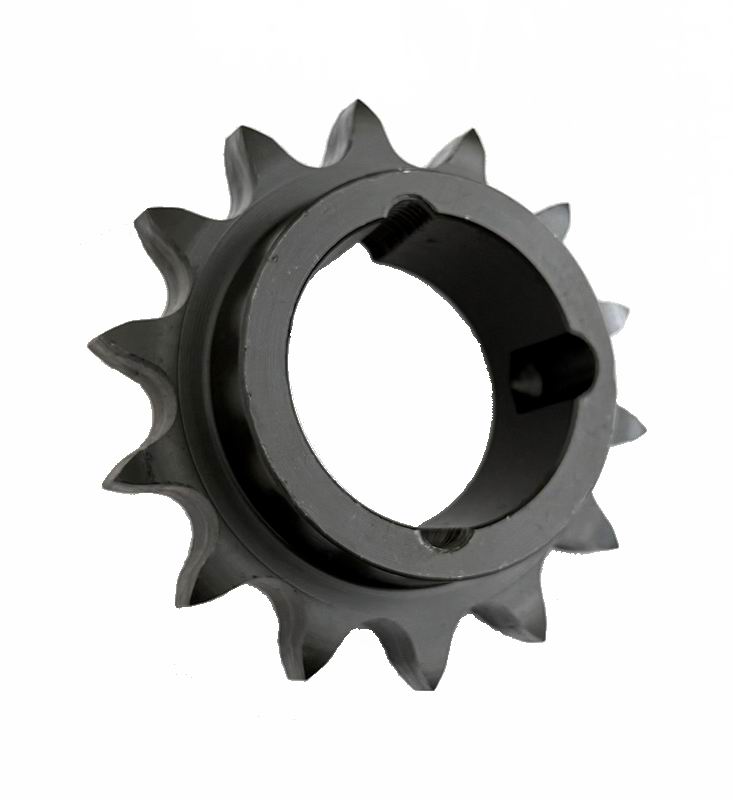

#100 Taper Bushed Sprocket 15 Teeth

Item ID: 100BTL15HT
100 Pitch, 2517 Bushing Taper Bushed Sprocket, 15 Teeth Hardened

UPS SKU: 4903863130296
Bore:

Technical Specification

Part No.: 100BTB15H
Type: Single Taper-Bushed
Teeth: 15
Bushing: 2517
OD: 6.631
PD: 6.012
max bore d: 2-1/2
HD: 4-1/4
L: 1-3/4
Sprocket Wt (lbs): 5.0
Bushing Wt (lbs): 3.5
