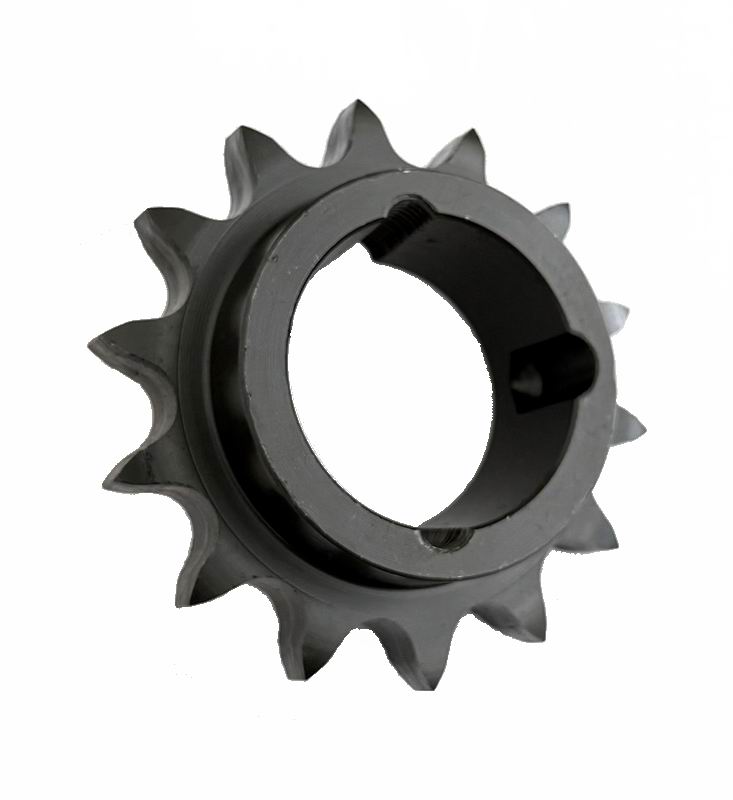

#100 Taper Bushed Sprocket 13 Teeth

The product image is for illustration purposes only.

Item ID: 100BTL13HT
100 Pitch, 2012 Bushing Taper Bushed Sprocket, 13 Teeth Hardened

UPS SKU: 4903863130272
Bore:

Technical Specification

Part No.: 100BTB13H
Type: Single Taper-Bushed
Teeth: 13
Bushing: 2012
OD: 5.821
PD: 5.223
max bore d: 2
HD: 3-9/16
L: 1-1/4
Sprocket Wt (lbs): 3.6
Bushing Wt (lbs): 1.7

$52.83
