#100 Taper Bushed Sprocket 32 Teeth

Item ID: 100BTL32HT
100 Pitch, 3020 Bushing Taper Bushed Sprocket, 32 Teeth Hardened

UPS SKU: 4903863130432
Bore:

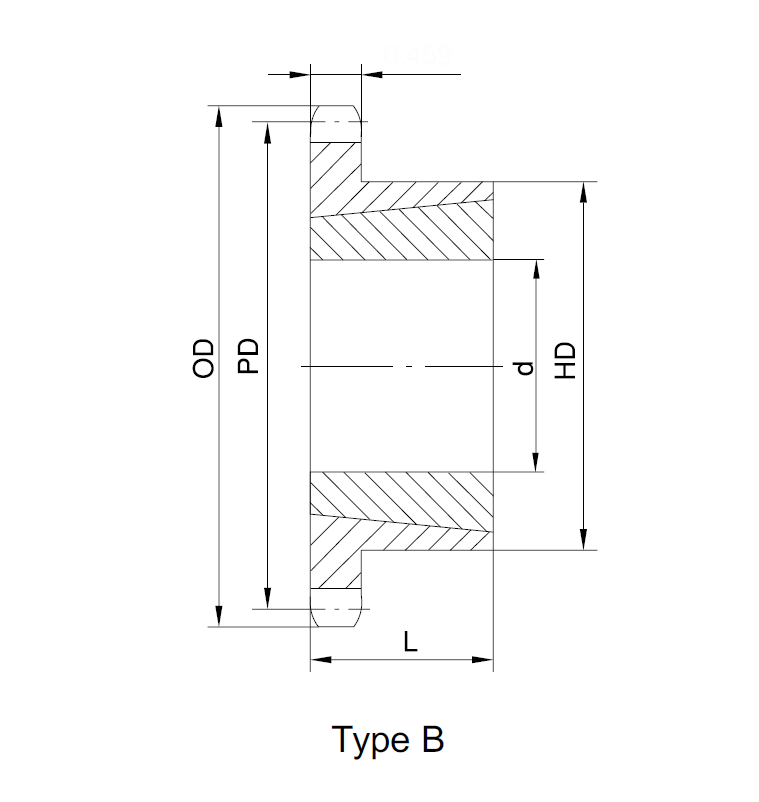

Technical Specification

Part No.: 100BTB32H
Type: Single Taper-Bushed
Teeth: 32
Bushing: 3020
OD: 13.442
PD: 12.753
max bore d: 3
HD: 5-1/4
L: 2
Sprocket Wt (lbs): 23.0
Bushing Wt (lbs): 6.5
