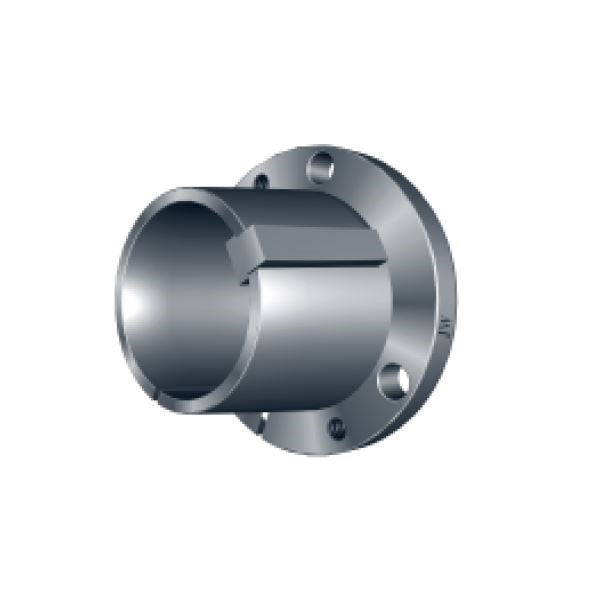

Q1 Series Split Taper Bushing, 1-1/8 Bore

Item ID: Q1 X 102
Q1 Series Split Taper Bushing, 1-1/8 Bore

UPS SKU: 4903863169937
Bore: 1-1/8

Technical Specification

Part No.: Q1
L: 2-1/2
T: 1-31/32
D Large End: 2.875
D small End: 2.765
OD: 4-1/8
D1: 3-3/8
W: 1/2
X: 1-3/4
R: 7/32
Bore Range Type 1: 3/4 to 2-1/16
Bore Range Type 2: 2-1/8 to 2-11/16
Cap Screw No.: : 3
Cap Screw Size: 3/8 x 1-1/4
Wrench Torque (lbs): 348
App. Wt. (lbs): 3.5
