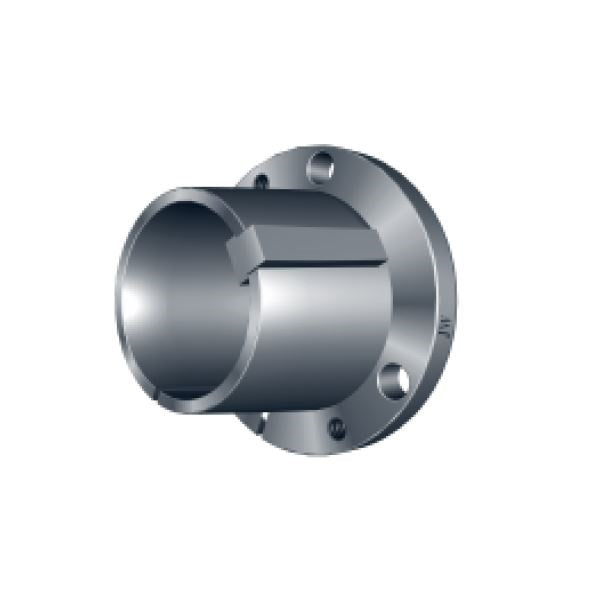

P1 Series Split Taper Bushing, 1-1/4 Bore

Item ID: P1 X 104
P1 Series Split Taper Bushing, 1-1/4 Bore

UPS SKU: 4903863169838
Bore: 1-1/4

Technical Specification

Part No.: P1
L: 1-15/16
T: 1-17/32
D Large End: 1.938
D small End: 1.855
OD: 3
D1: 2-7/16
W: 3/8
X: 1-5/16
R: 7/32
Bore Range Type 1: 1/2 to 1-7/16
Bore Range Type 2: 1-1/2 to 1-3/4
Cap Screw No.: : 3
Cap Screw Size: 5/16 x 1
Wrench Torque (lbs): 192
App. Wt. (lbs): 1.3
