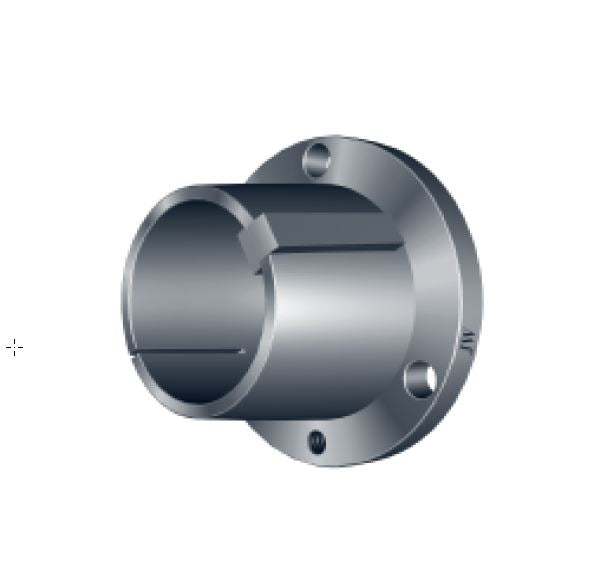

H Series Split Taper Bushing 1-1/8 bore

Item ID: H X 102
H Series Split Taper Bushing, 1-1/8 Bore

UPS SKU: 4903863166233
Bore: 1-1/8

Technical Specification

Part No.: H
L: 1-1/4
T: 1
D Large End: 1.625
D small End: 1.57
OD: 2-1/2
D1: 2
X: 7/8
R: 1/8
Bore Range Type 1: 3/8 to 1-3/8
Bore Range Type 2: 1-7/16 to 1-1/2
Cap Screw No.: 2
Cap Screw Size: 1/4 x 3/4
Wrench Torque (lbs): 95
App. Wt. (lbs): 0.8
