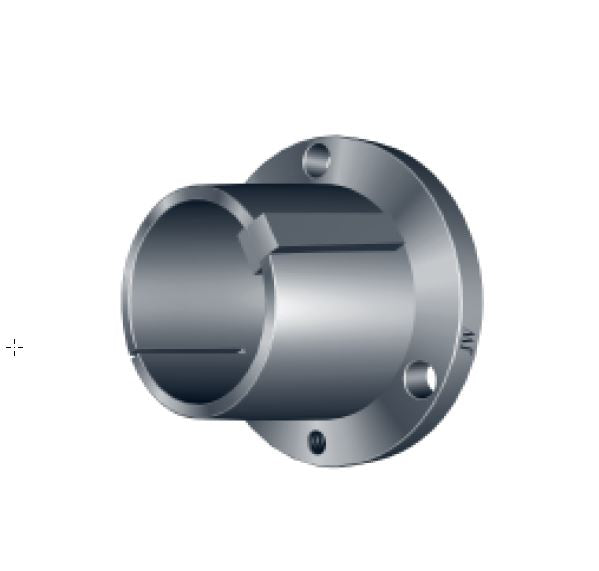

G Series Split Taper Bushing 7/8 bore

Item ID: G X 014
G Series Split Taper Bushing, 7/8 Bore

UPS SKU: 4903863166103
Bore: 7/8

Technical Specification

Part No.: G
L: 1
T: 3/4
D Large End: 1.172
D small End: 1.133
OD: 2
D1: 1-9/16
X: 5/8
R: 1/8
Bore Range Type 1: 3/8 to 15/16
Bore Range Type 2: 1
Cap Screw No.:  2
Cap Screw Size: 1/4 x 5/8
Wrench Torque (lbs): 95
App. Wt. (lbs): 0.5
