#120 R Bushing Split Taper Sprocket 26 Teeth 120R26H

Item ID: 120R26HT
120 Pitch, R Bushing Split Taper Sprocket, 26 Teeth Hardened

UPS SKU:
Bore:

Technical Specification

Part No.: 120R26H
Teeth: 26

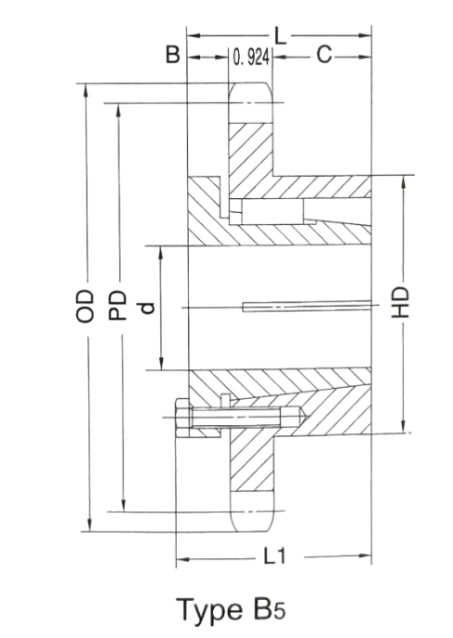

Type: B5
Bushing: R1
OD: 13.250
PD: 12.444
max bore d: 3-3/4
L1: 3-5/32
L: 2-7/8
B: 7/8
C: 1-1/16
HD: 5-3/8
App. Wt. (lbs): 32.90
