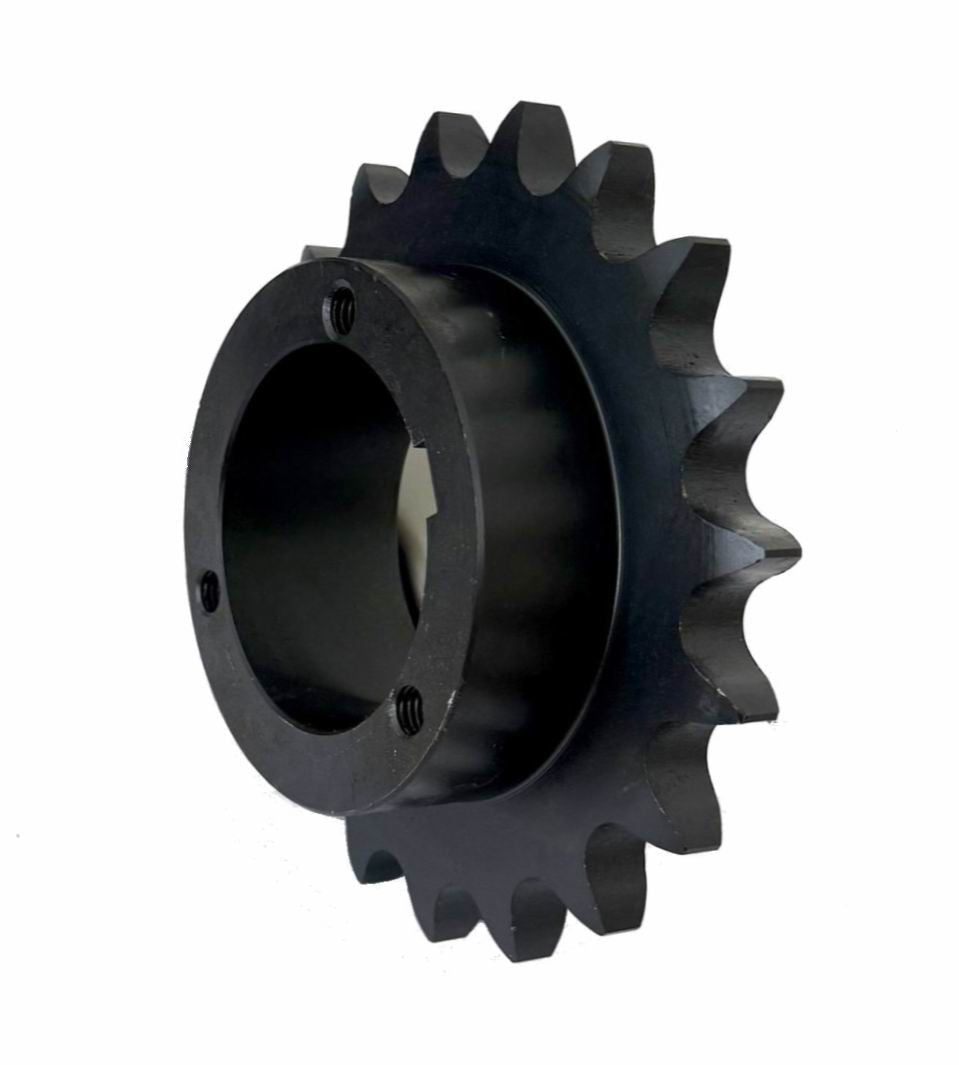

#100 Q Bushed 24 Teeth

Item ID: 100Q24HT
100 Pitch, Q Bushing Split Taper Sprocket, 24 Teeth Hardened

UPS SKU: 4903863130883
Bore:

Technical Specification

Part No.: 100Q24H
Teeth: 24
Type: B4
Bushing: Q1
OD: 10.25
PD: 9.577
max bore d: 2-11/16
L1: 2-25/32
L: 2-1/2
B: 1-13/16
C:
HD: 4-1/8
App. Wt. (lbs): 15.5
