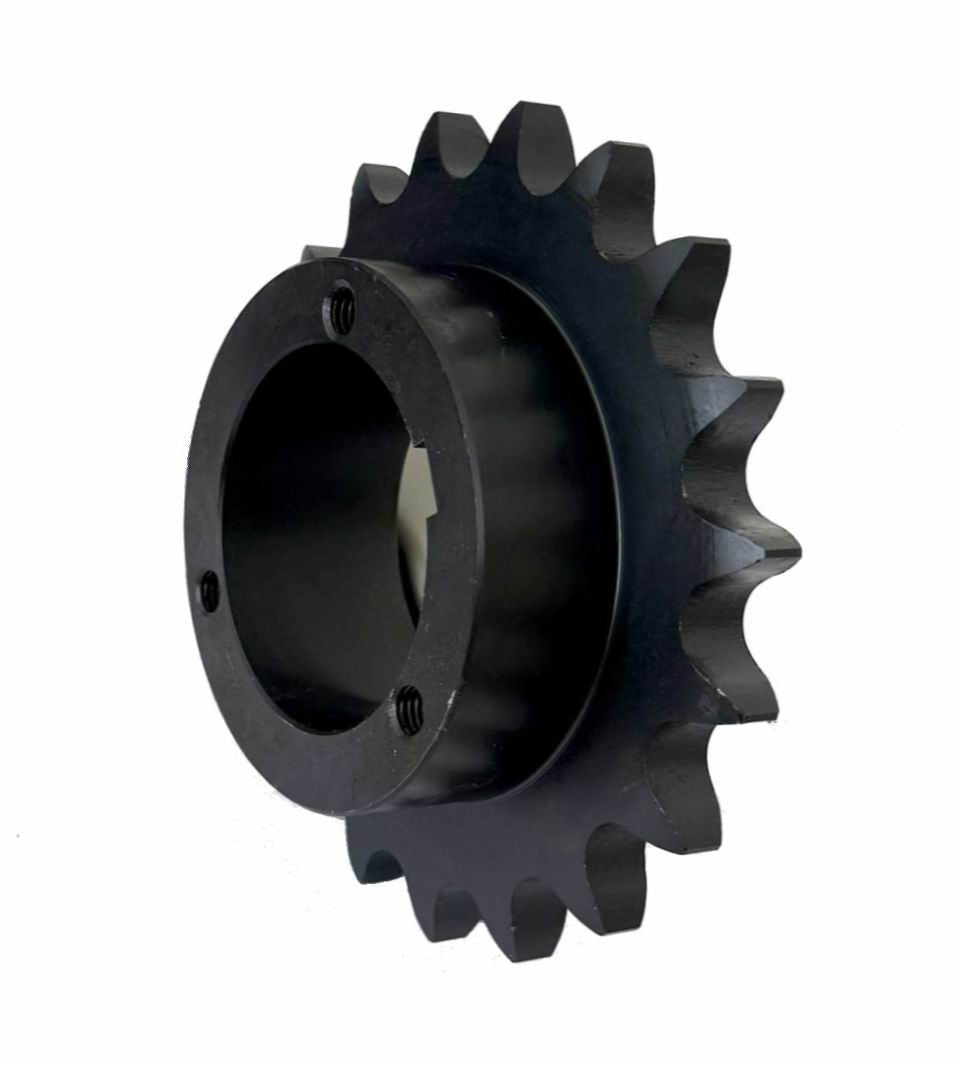

#100 Q Bushed 16 Teeth

Item ID: 100Q16HT
100 Pitch, Q Bushing Split Taper Sprocket, 16 Teeth Hardened

UPS SKU: 4903863130807
Bore:

Technical Specification

Part No.: 100Q16H
Teeth: 16
Type: B4
Bushing: Q1
OD: 7.03
PD: 6.407
max bore d: 2-11/16
L1: 2-25/32
L: 2-1/2
B: 1-13/16
C:
HD: 4-1/8
App. Wt. (lbs): 7.4
