#100 Q Bushed 12 Teeth

Item ID: 100Q12HT
100 Pitch, Q Bushing Split Taper Sprocket, 12 Teeth Hardened

UPS SKU: 4903863130760
Bore:

Technical Specification

Part No.: 100Q12H
Teeth: 12

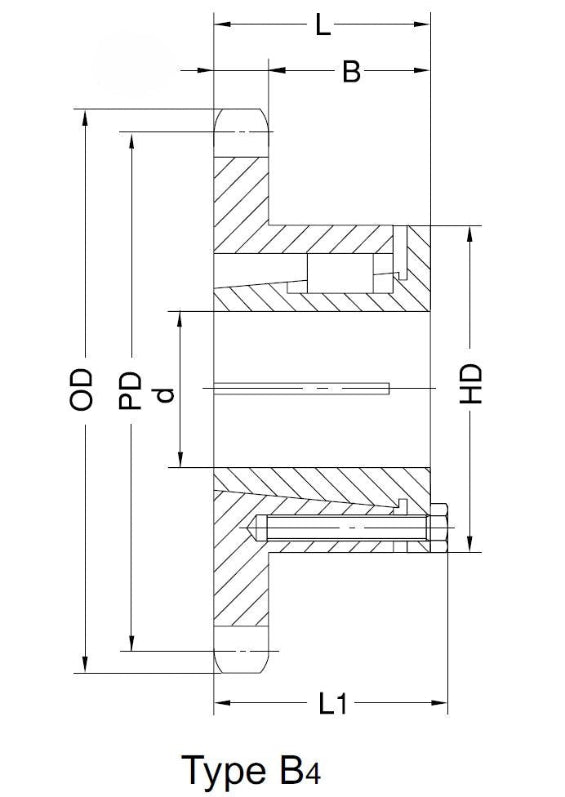

Type: B4
Bushing: Q1
OD: 5.42
PD: 4.83
max bore d: 2-11/16
L1: 2-27/32
L: 2-1/2
B: 1-7/8
C: 1/16
HD: 4-1/8
App. Wt. (lbs): 3.5
