#100 P Bushed 11 Teeth

Item ID: 100P11HT
100 Pitch, P Bushing Split Taper Sprocket, 11 Teeth Hardened

UPS SKU: 4903863130753
Bore:

Technical Specification

Part No.: 100P11H
Teeth: 11

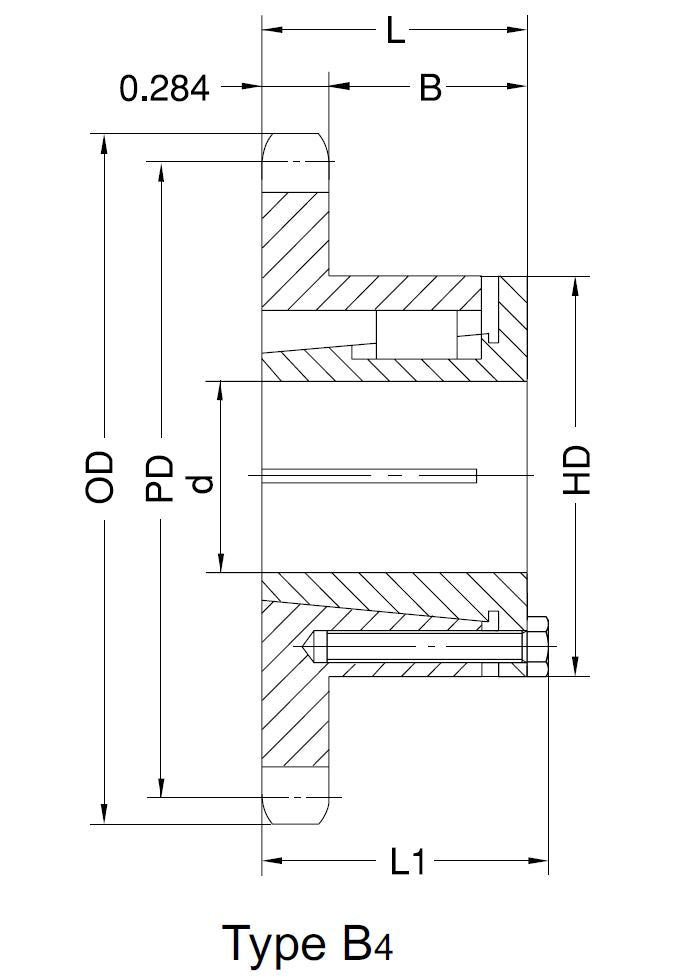

Type: B4
Bushing: P1
OD: 5.01
PD: 4.437
max bore d: 1-3/4
L1: 2-3/16
L: 1-15/16
B: 1-1/4
C:
HD: 3
App. Wt. (lbs): 3
