#100 E Bushed QD 18 Teeth

Item ID: 100E18HT
100 Pitch, E Bushing QD Sprocket, 18 Teeth Hardened

UPS SKU: 4903863130517
Bore:

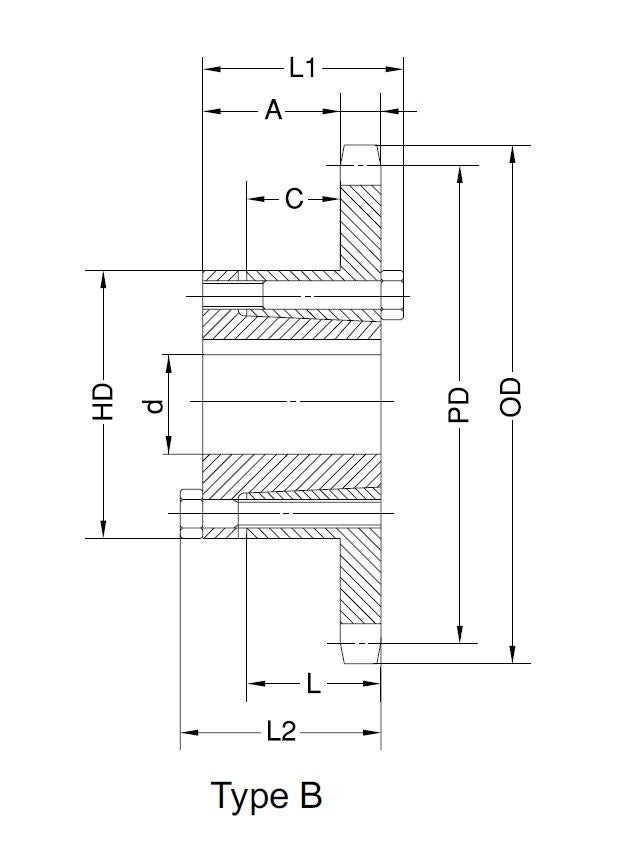

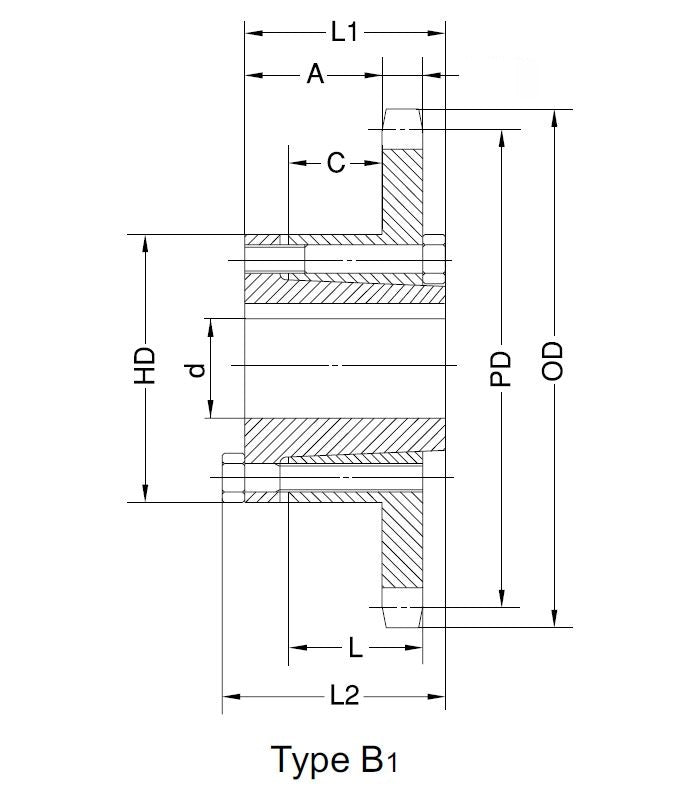

Technical Specification

Part No.: 100E18H
Type: Single Q-bushed
Teeth: 18
Bushing: E
OD: 7.84
PD: 7.198
max bore d: 3-1/2
L1: 2-5/8
L2: 2-15/16
HD: 6
A: 1-13/16
C: 15/16
L: 1-5/8
App Wt with Hub (lbs): 19
App Sprocket Wt (lbs): 9
