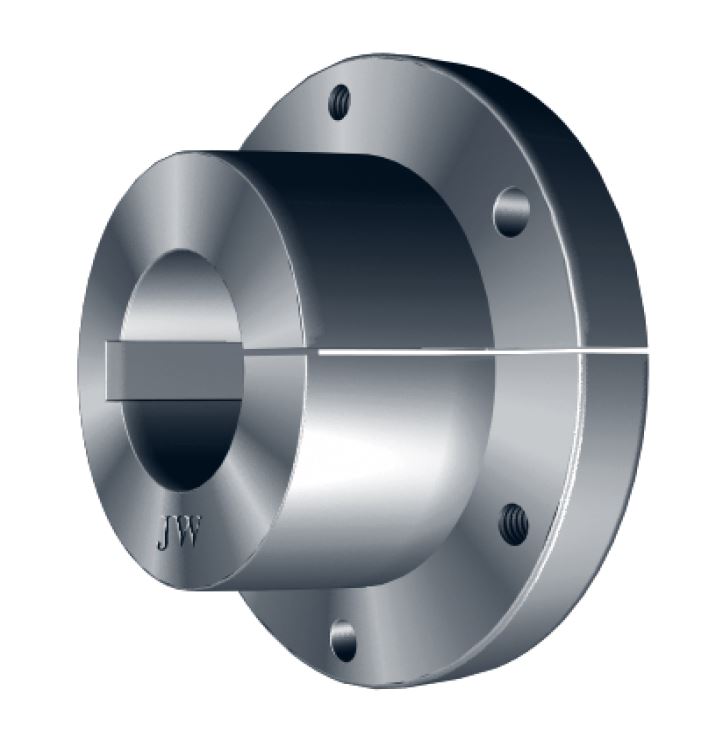

SK Bushing QD 2-5/16

Item ID: SK X 205
SK Series QD Bushing, 2-5/16 Bore

UPS SKU: 4903863172227
Bore: 2-5/16

Technical Specification

Part No.: SK
A: 9/16
D: 2.812
OD: 3-7/8
B: 1-3/8
F: 1-1/4
G: 3/16
L: 1-15/16
D1: 3-5/16
hexhead bolt no.: 3
hexhead bolt size: 5/16*2
d min: 1/2
d max standard keyway: 2-1/8
d max shallow keyway: 2-1/2
Setscrew: 5/16
App. Wt. (lbs): 2
