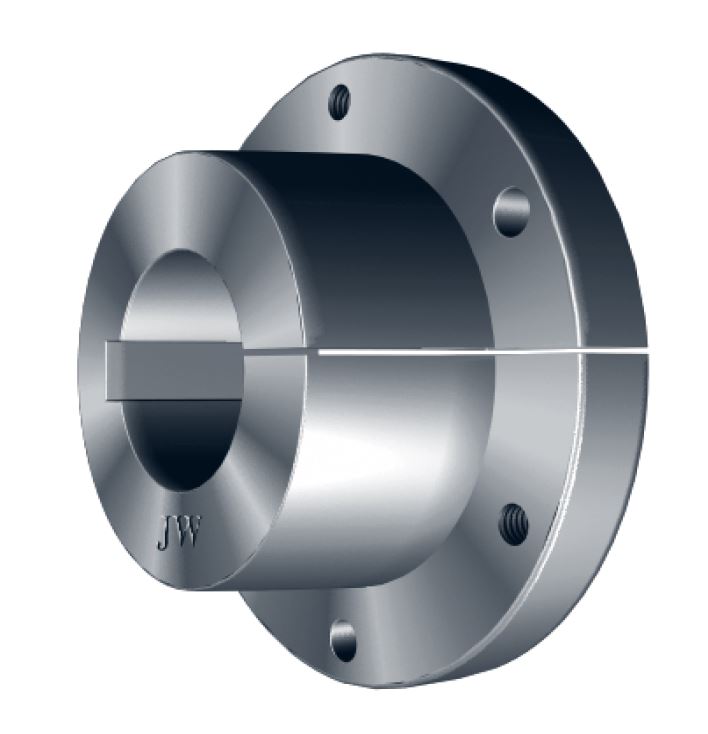

SH Bushing QD 1-3/16

Item ID: SH X 103
SH Series QD Bushing, 1-3/16 Bore

UPS SKU: 4903863171831
Bore: 1-3/16

Technical Specification

Part No.: SH
A: 7/16
D: 1.871
OD: 2-11/16
B: 7/8
F: 13/16
G: 3/16
L: 1-5/16
D1: 2-1/4
hexhead bolt no.: 3
hexhead bolt size: 1/4*1-3/8
d min: 1/2
d max standard keyway: 1-3/8
d max shallow keyway: 1-11/16
Setscrew: 1/4
App. Wt. (lbs): 1
