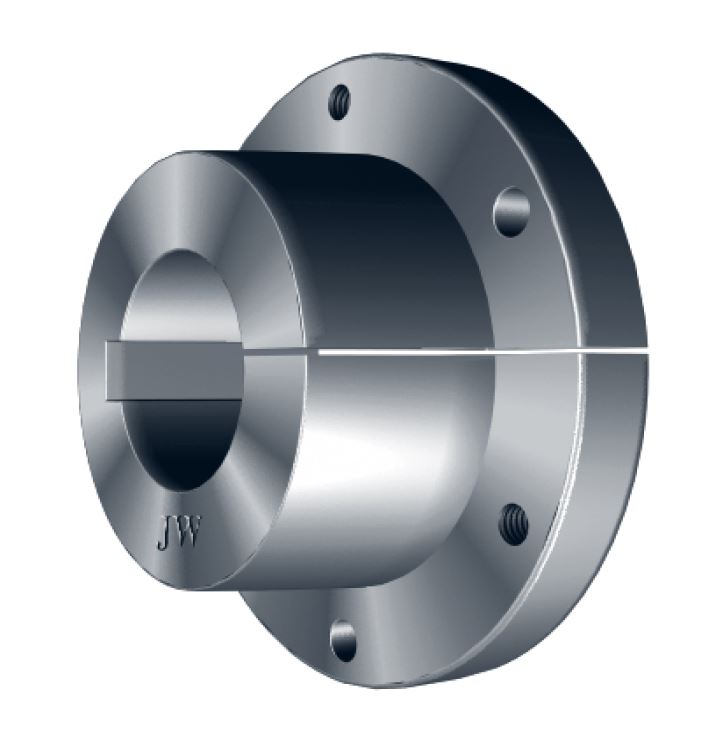

JA Bushing QD 11/16 bore

Item ID: JA X 011
JA Series QD Bushing, 11/16 Bore

UPS SKU: 4903863166424
Bore: 11/16

Technical Specification

Part No.: JA
A: 3/8
D: 1.375
OD: 2
B: 11/16
F: 9/16
G: 1/8
L: 1-1/16
D1: 1.665
hexhead bolt no.: 3
hexhead bolt size: 10*1
d min: 3/8
d max standard keyway: 1
d max shallow keyway: 1-1/4
Setscrew: 10-24
App. Wt. (lbs): 0.9
