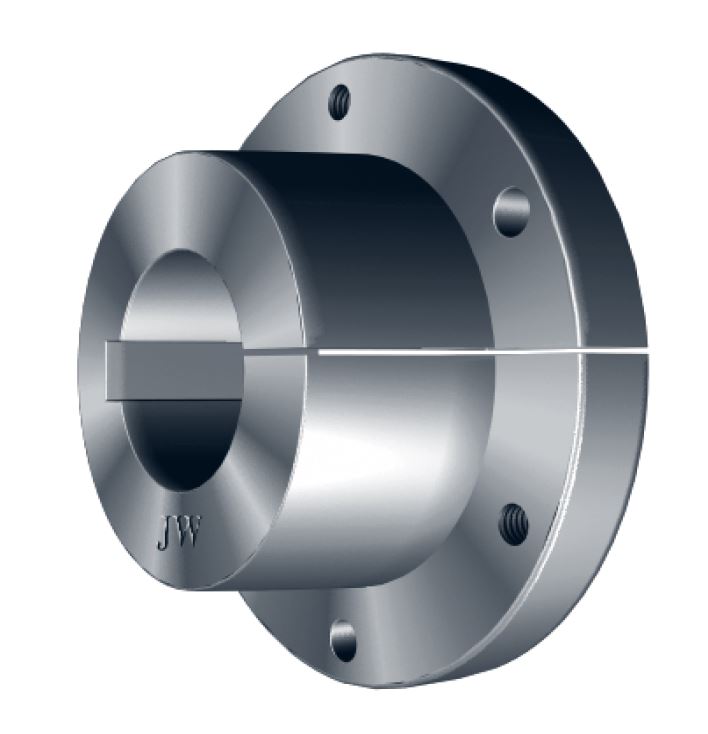

J Bushing QD 2-15/16 bore

Item ID: J X 215
J Series QD Bushing, 2-15/16 Bore

UPS SKU: 4903863166325
Bore: 2-15/16

Technical Specification

Part No.: J
A: 1
D: 5.148
OD: 7-1/4
B: 3-1/2
F: 3-3/16
G: 3/8
L: 4-1/2
D1: 6-1/4
hexhead bolt no.: 3
hexhead bolt size: 5/8*4-1/2
d min: 1-7/16
d max standard keyway: 3-3/4
d max shallow keyway: 4-1/2
Setscrew: 5/8
App. Wt. (lbs): 18
