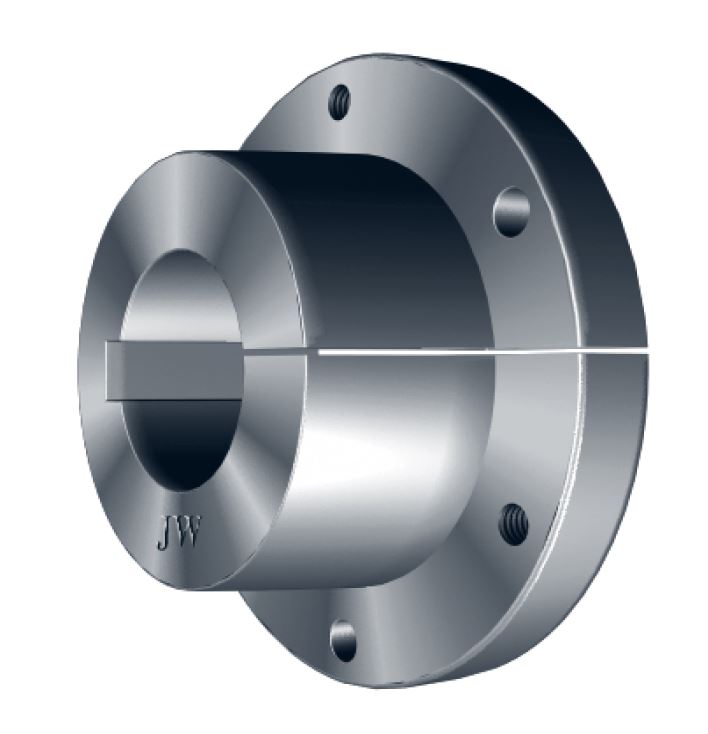

F Bushing QD 3-7/16 bore

Item ID: F X 307
F Series QD Bushing, 3-7/16 Bore

UPS SKU: 4903863166080
Bore: 3-7/16

Technical Specification

Part No.: F
A: 13/16
D: 4.437
OD: 6-5/8
B: 2-13/16
F: 2-1/2
G: 3/8
L: 3-5/8
D1: 5-5/8
hexhead bolt no.: 3
hexhead bolt size: 9/16*3-5/8
d min: 1
d max standard keyway: 3-5/16
d max shallow keyway: 3-15/16
Setscrew: 1/2
App. Wt. (lbs): 11.5
