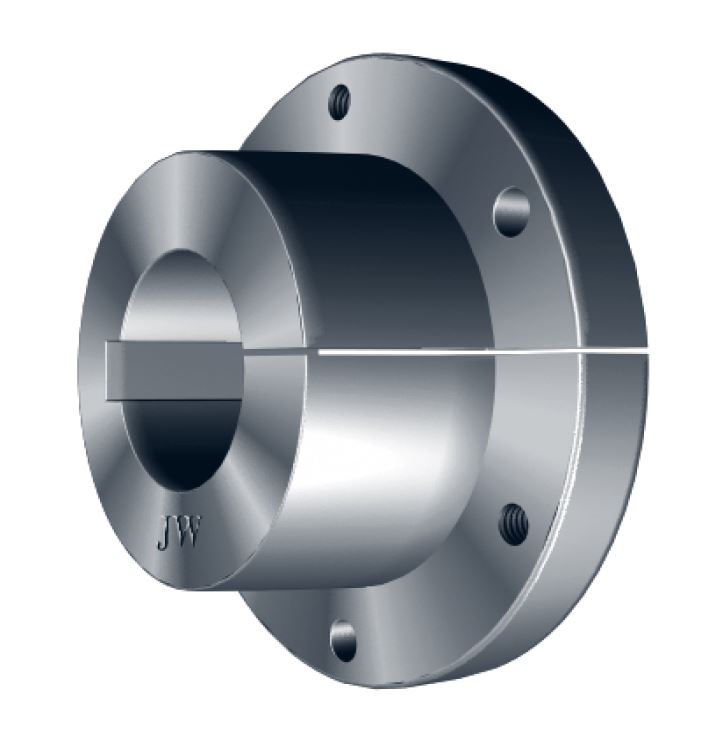

E Bushing QD 3-7/16 bore

Item ID: E X 307
E Series QD Bushing, 3-7/16 Bore

UPS SKU: 4903863165922
Bore: 3-7/16

Technical Specification

Part No.: E
A: 3/4
D: 3.834
OD: 6
B: 1-7/8
F: 1-5/8
G: 5/16
L: 2-5/8
D1: 5
hexhead bolt no.: 3
hexhead bolt size: 1/2*2-3/4
d min: 7/8
d max standard keyway: 2-7/8
d max shallow keyway: 3-1/2
Setscrew: 3/8
App. Wt. (lbs): 10
