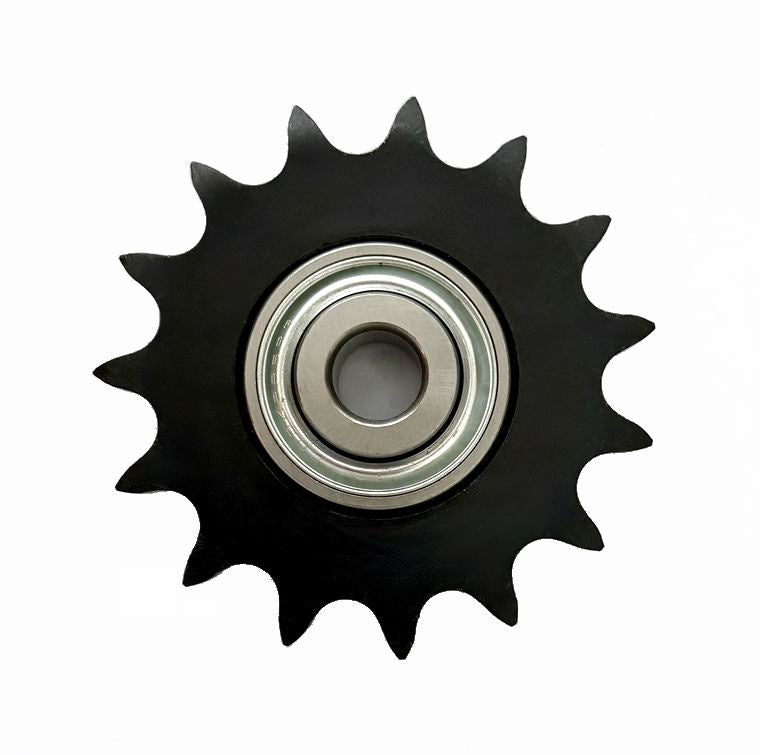

#50 Ball Bearing Idler Sprocket 15 Teeth 5/8" Bore 50BB15H 5/8

Item ID: JWX 50BB15H 5/8
Ball bearing Idler sprocket with 203KRR2 bearing, .64 inch Bore

UPS SKU: 4903863169616
Bore:

Technical Specification

Part No.: 50BB15H010
Type: High Speed Ball Bearing
Number of Teeth: 15
Chain Pitch: 50

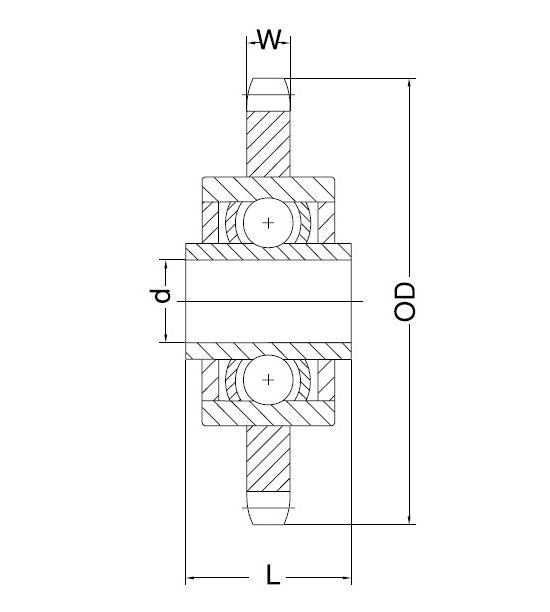

OD: 3.32
d: 0.638
L: 0.72
W: 0.343
App Wt (lbs): 0.75
