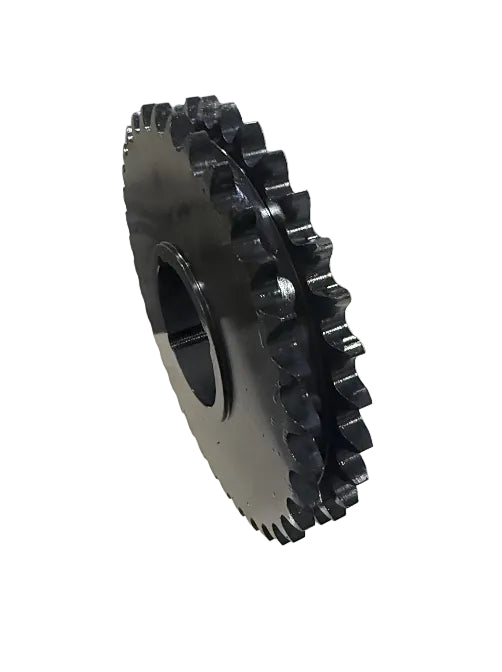

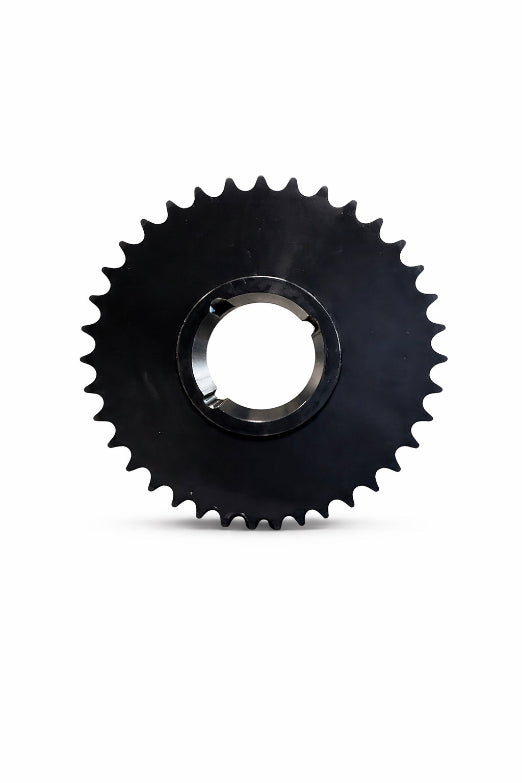

#80 Double, Taper-Bushed Sprocket, 36 Teeth, D80CTL36

Item ID: D80CTL36
 80 Pitch, 3020 Bushing, Double Taper Lock Sprocket, 36 Teeth

UPS SKU:
Bore:

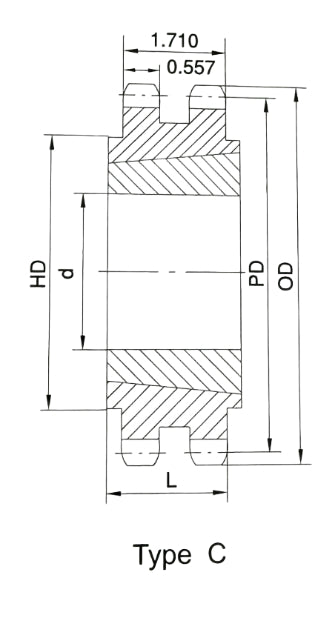

Technical Specification

Part No.: D80CTL36
Type: Double Taper-Bushed
Pitch: 80
Number of Teeth: 36

Bushing: 3020
OD: 12.030
PD: 11.474
d max: 3
L: 2
HD: 5-1/4
App Wt (lbs): 39.4
