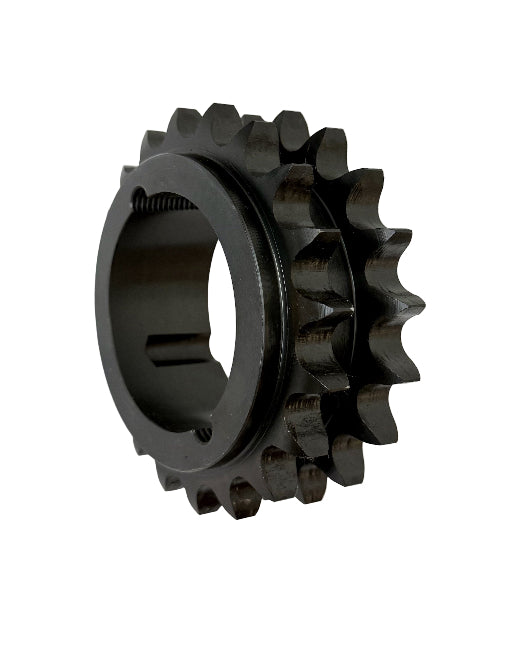

#80 Double Taper-Bushed Sprocket 21 Teeth

Item ID: D80BTB21H
80 Pitch, 3020 Bushing Double Taper-Bushed Sprocket, 21 Teeth hardened

UPS SKU:
Bore:

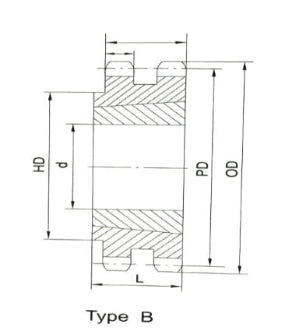

Technical Specification

Part No.: D80BTB21H
Type: Double Taper-Bushed
Pitch: 80
Number of Teeth: 21

Bushing: 3020
OD: 8.516
PD: 7.979
d max: 3
L: 2
HD: 6-7/8
App Wt (lbs): 16.50
