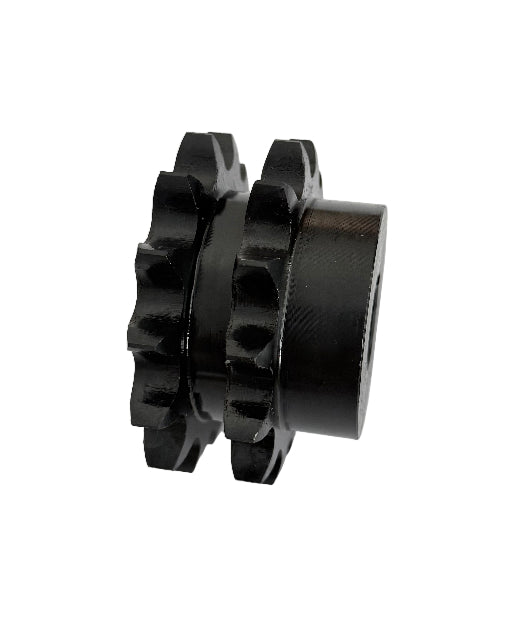

#80 Double Type B, 13 Teeth

The product image is for illustration purposes only.

Item ID: D80B13H
80 Pitch, Double Type B Hub, 13 Teeth hardened

UPS SKU: 4903863164437
Bore:

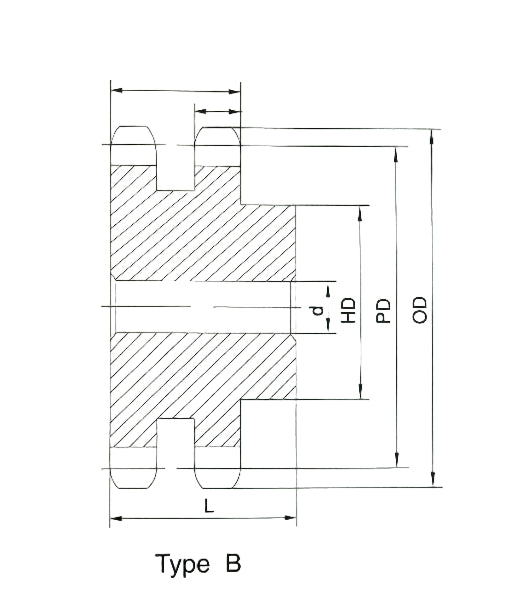

Technical Specification

Part No.: D80B13H
Type: Double Type B
Pitch: 80
Number of Teeth: 13
OD: 4.660
PD: 4.179
d min: 1
d max: 2-1/4
L: 2-1/2
HD: 3-5/32
App Wt (lbs): 6.3

$55.50
