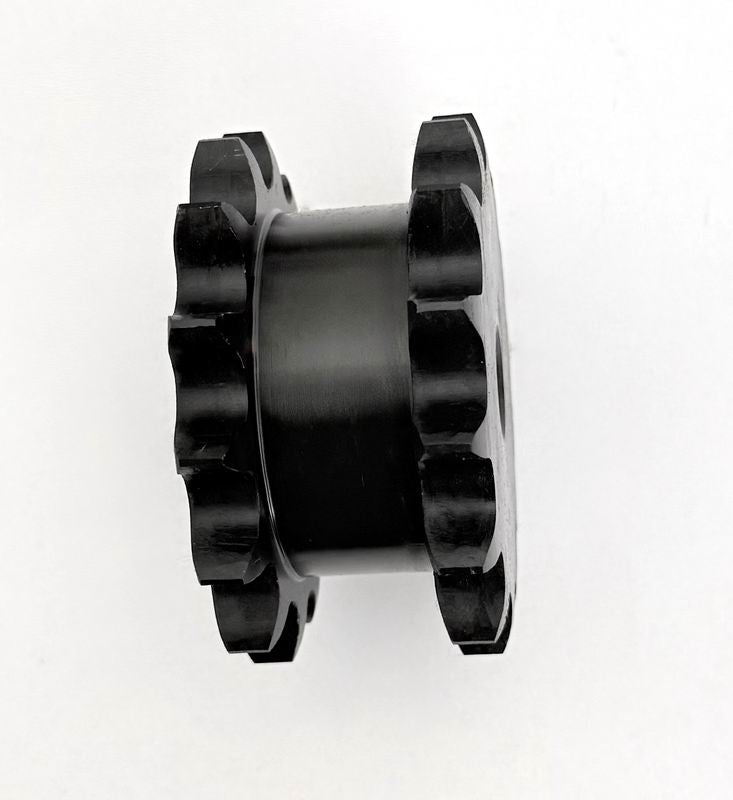

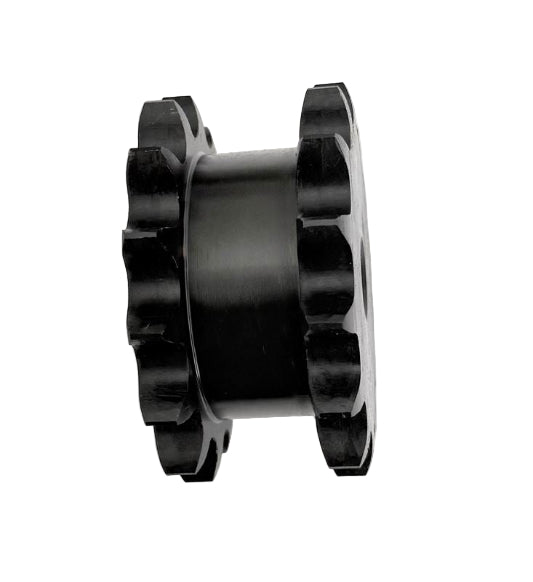

#80 Double Single 22 Teeth Type A Plate

Item ID: DS80A22HT
Double Single 80 Pitch, Type A Plate, 22 Teeth hardened

UPS SKU: 4903863165434
Bore:

Technical Specification

Part No.: DS80A22H
Type: Double-Single Type A
Pitch: DS80
Number of Teeth: 22
OD: 7.56
PD: 7.027
d min: 1
d max: 3-7/8
L: 2-3/16
B: 1-5/8
HD: 5-59/64
T: 0.575
App Wt (lbs): 18.4
