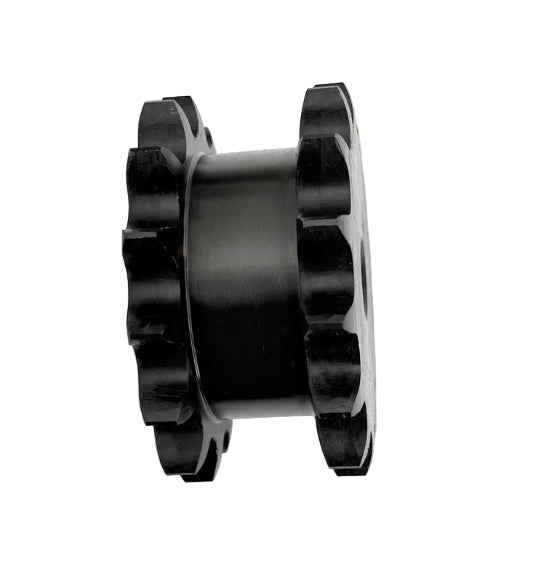

#80 Double Single, 16 Teeth, Type A, DS80A16H

Item ID: DS80A16HT
Double Single 80 Pitch, Type A Plate, 16 Teeth hardened

UPS SKU: 4903863165335
Bore:

Technical Specification

Part No.: DS80A16H

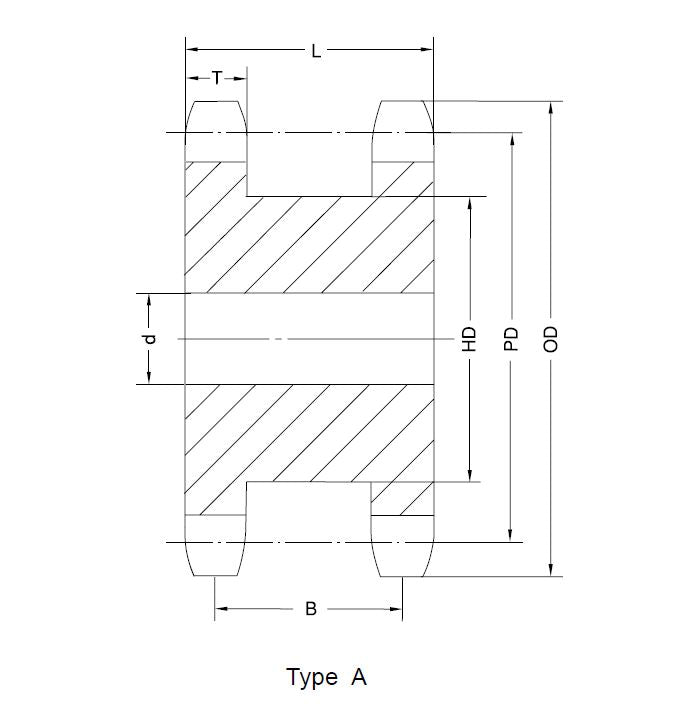

Type: Double-Single Type A
Pitch: DS80
Number of Teeth: 16
OD: 5.63
PD: 5.126
d min: 1
d max: 2-11/16
L: 2-3/16
B: 1-5/8
HD: 4
T: 0.575
App Wt (lbs): 9.5
