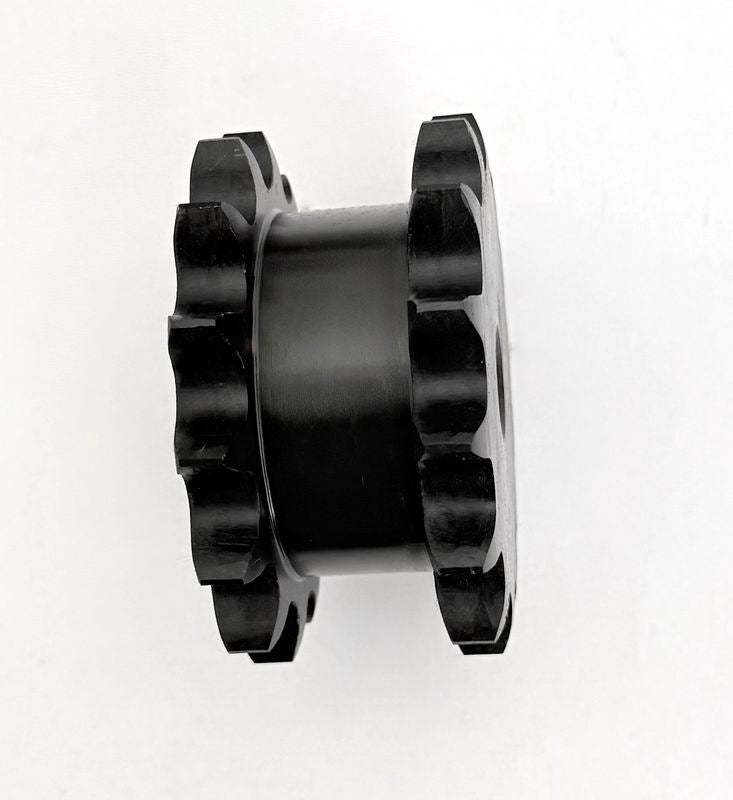

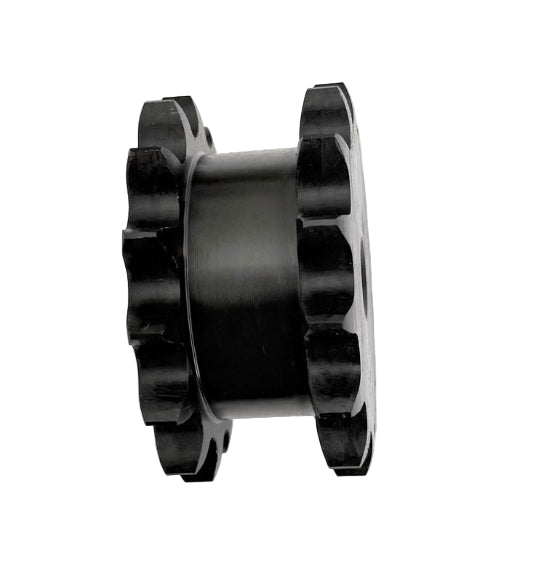

#80 Double Single, 15 Teeth, Type A, DS80A15H

Item ID: DS80A15HT
Double single 80 Pitch, Type A, 15 teeth hardened, 1in RSB

UPS SKU: 4903863165304
Bore:

Technical Specification

Part No.: DS80A15H
Type: Double-Single Type A
Pitch: DS80
Number of Teeth: 15
OD: 5.3
PD: 4.81
d min: 1
d max: 2-3/8
L: 2-3/16
B: 1-5/8
HD: 3-13/16
T: 0.575
App Wt (lbs): 9.6
