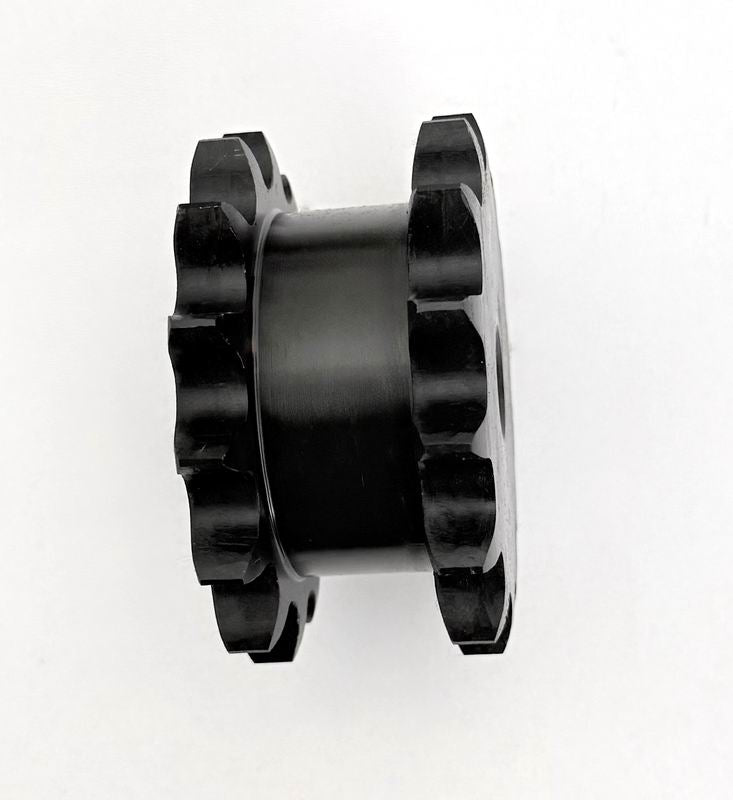

#60 Double-Single, 21 Teeth, Type A Platte

Item ID: DS60A21H
60 Pitch, Double-Single, Type A plate, 21 Teeth hardened

UPS SKU: 4903863165212
Bore:

Technical Specification

Part No.: DS60A21H
Type: Double-Single Type A
Pitch: DS60
Number of Teeth: 21
OD: 5.43
PD: 5.033
d min: 3/4
d max: 2-3/4
L: 1-15/16
B: 1-31/64
HD: 4-3/16
T: 0.459
App Wt (lbs): 7.5
