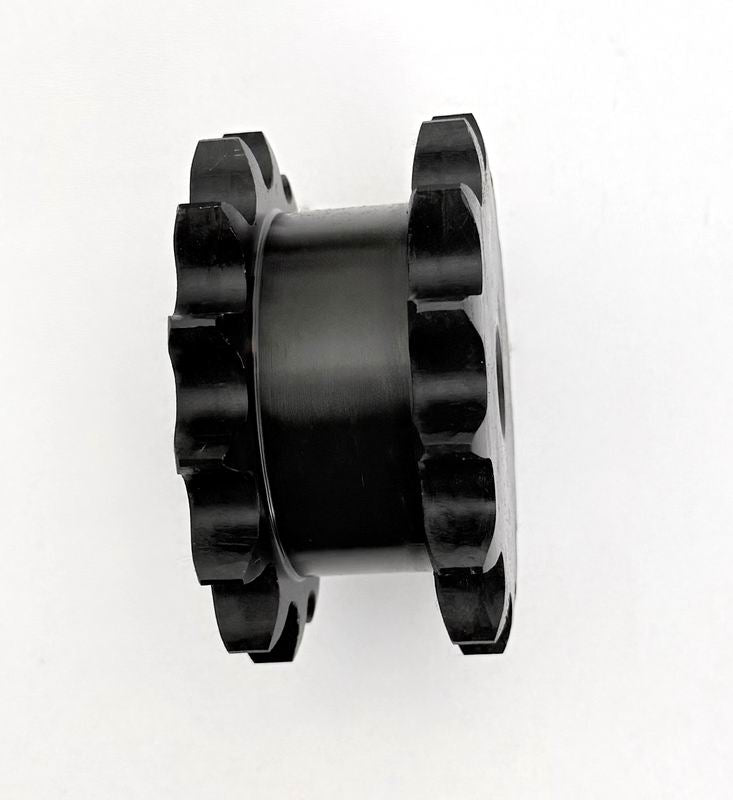

#60 Double-Single, 20 Teeth, Type A Plate

Item ID: DS60A20H
60 Pitch, Double-Single, Type A plate, 20 Teeth hardened

UPS SKU: 4903863165113
Bore:

Technical Specification

Part No.: DS60A20H

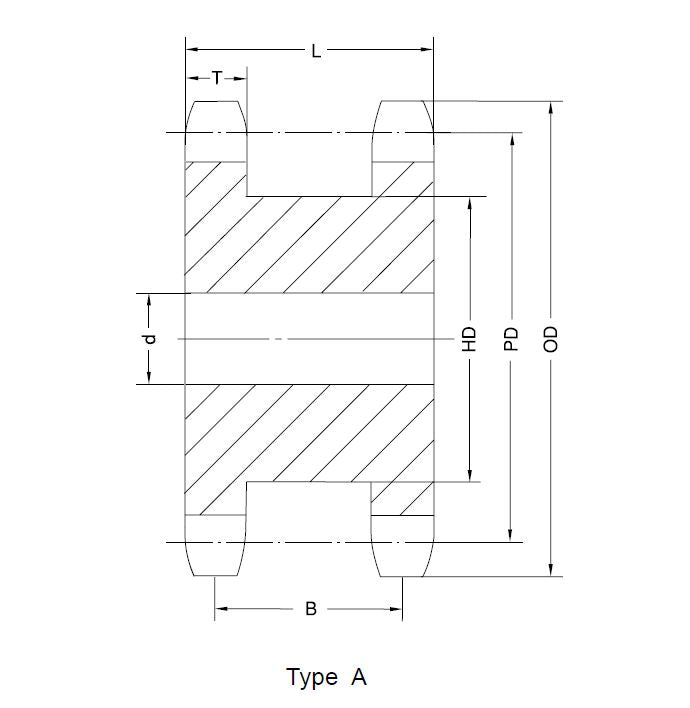

Type: Double-Single Type A
Pitch: DS60
Number of Teeth: 20
OD: 5.19
PD: 4.794
d min: 3/4
d max: 2-1/4
L: 1-15/16
B: 1-31/64
HD: 3-61/64
T: 0.459
App Wt (lbs): 7
