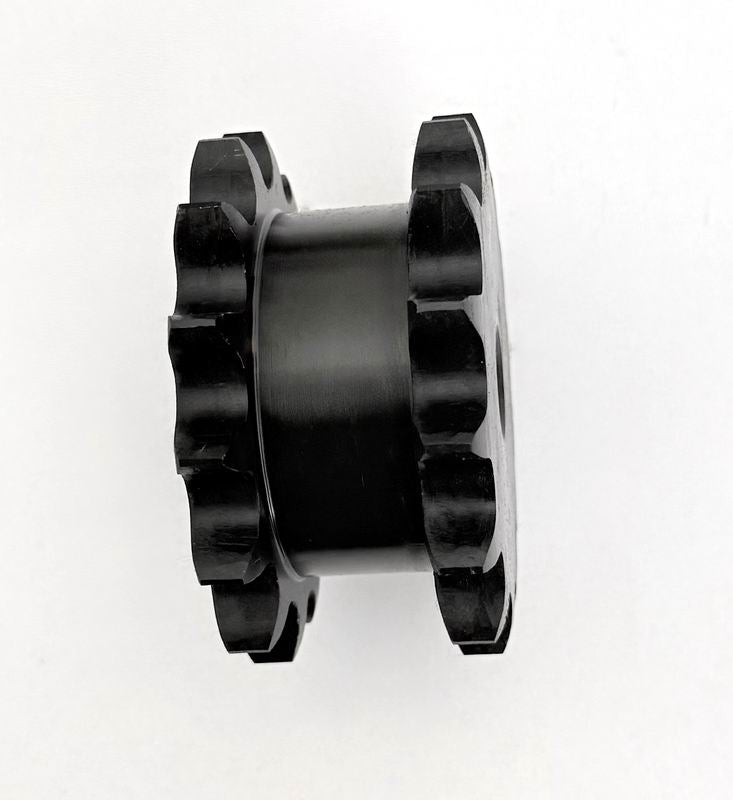

#60 Double-Single, 16Teeth, Type A Plate

Item ID: DS60A16H
60 Pitch, Double-Single, Type A plate, 16 Teeth hardened

UPS SKU: 4903863165168
Bore:

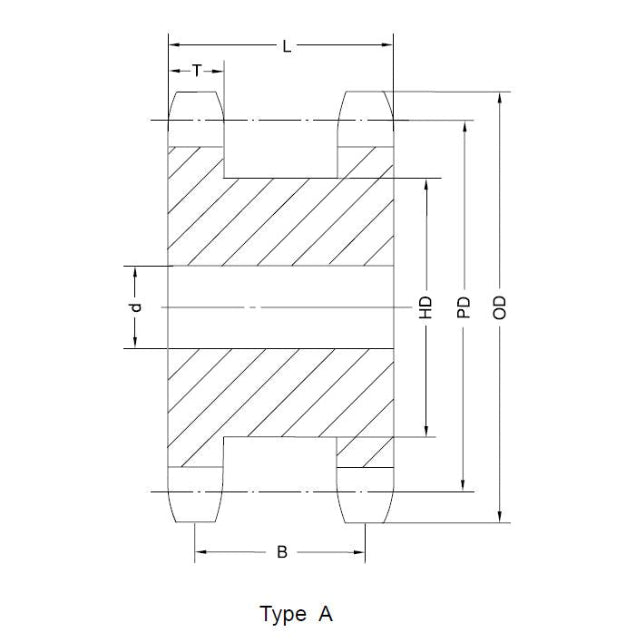

Technical Specification

Part No.: DS60A16H
Type: Double-Single Type A
Pitch: DS60
Number of Teeth: 16
OD: 4.22
PD: 3.845
d min: 3/4
d max: 1-11/16
L: 1-15/16
B: 1-31/64
HD: 3-3/64
T: 0.459
App Wt (lbs): 4.5
