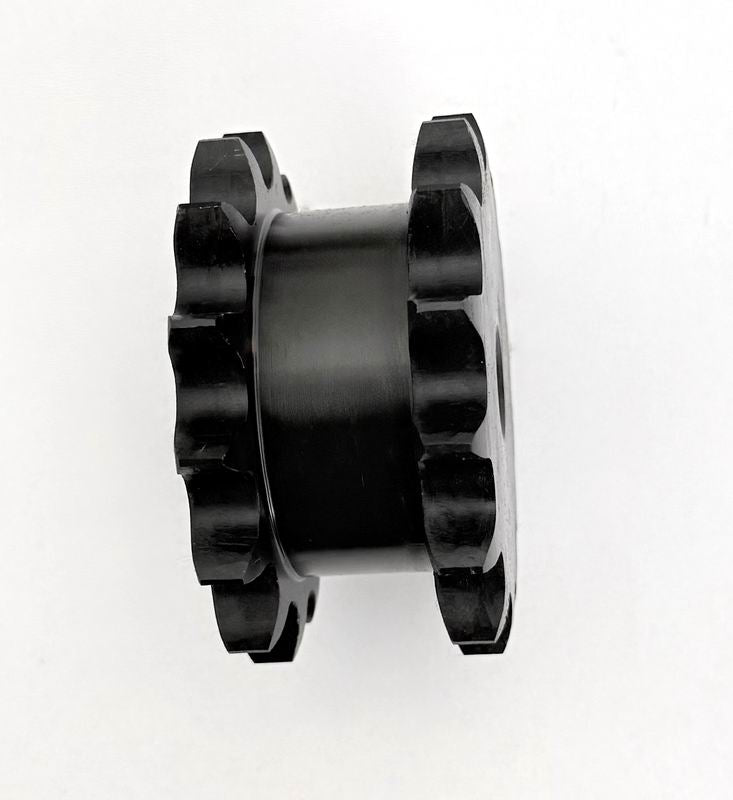

#60 Double-Single, 13 Teeth, Type A Plate

Item ID: DS60A13H
60 Pitch, Double-Single Type A plate, 13 Teeth hardened

UPS SKU: 4903863165113
Bore:

Technical Specification

Part No.: DS60A13H
Type: Double-Single Type A
Pitch: DS60
Number of Teeth: 13
OD: 3.49
PD: 3.134
d min: 3/4
d max: 1-1/4
L: 1-15/16
B: 1-31/64
HD: 2-11/32
T: 0.459
App Wt (lbs): 2.6
