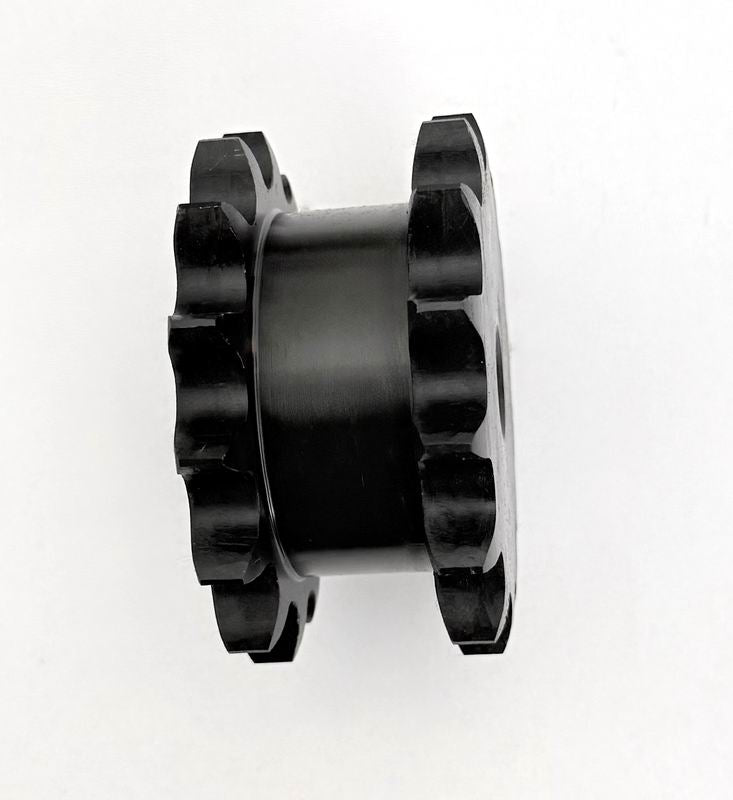

#40 Double-Single, Type A, 17 Teeth, 1" Finished

Item ID: DS40A17F100H
40 Pitch, Double-Single A plate, 17 teeth hardened, 1" Finished Bore

UPS SKU: 4903863164994
Bore: 1"

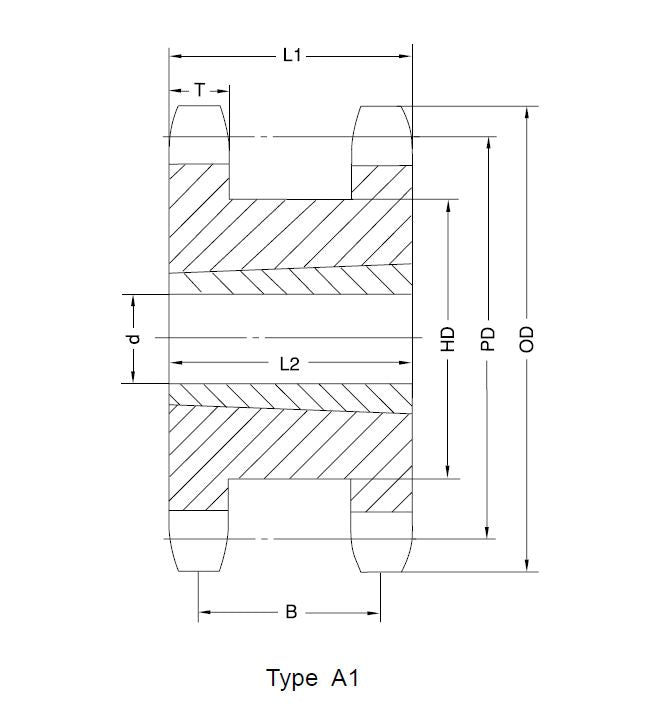

Technical Specification

Part No.: DS40A17H
Type: Double-Single Type A
Pitch: DS40
Number of Teeth: 17
OD: 2.98
PD: 2.721
d min: 1/2
d max: 1-5/16
L: 1-13/32
B: 1-1/8
HD: 2-1/8
T: 0.284
App Wt (lbs): 1.6
