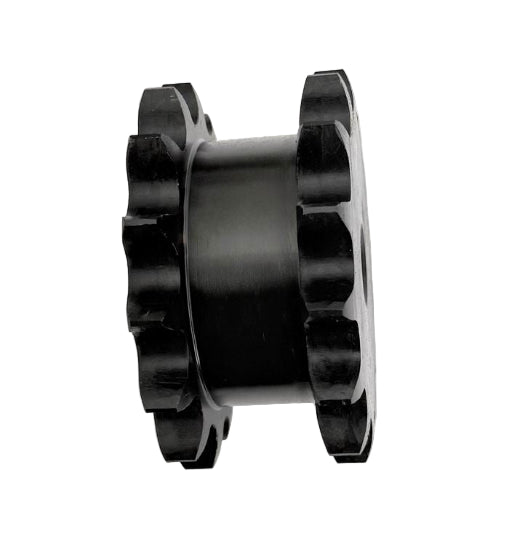

#100 Double Single 17 Teeth Type A Plate

Item ID: DS100A17HT
Double single 100 Pitch, A Plate, 17 Teeth hardened

UPS SKU: 4903863164888
Bore:

Technical Specification

Part No.: DS100A17H
Type: Double-Single Type A
Pitch: DS100
Number of Teeth: 17
OD: 7.44
PD: 6.803
d min: 1-1/4
d max: 3-5/8
L: 2-11/16
B: 2
HD: 4-29/32
T: 0.692
App Wt (lbs): 21.50
