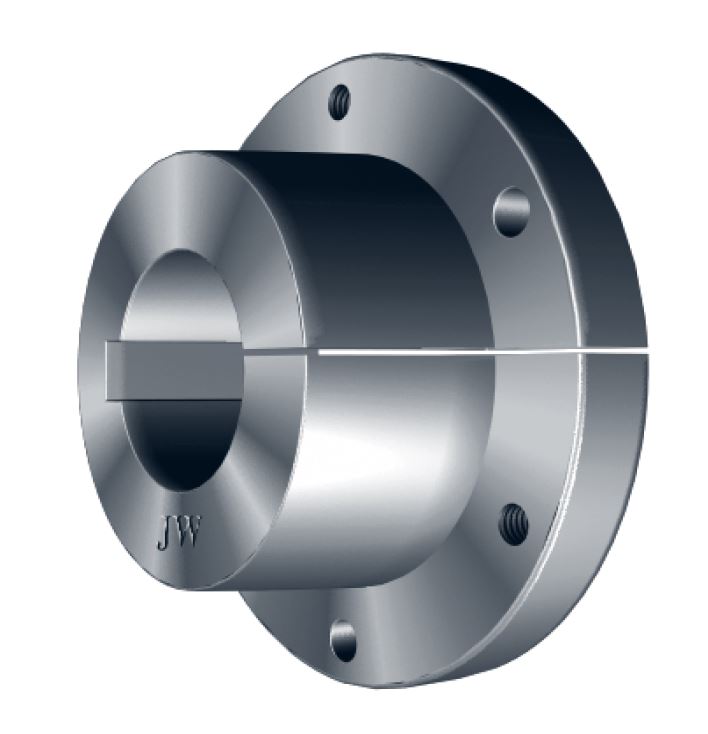

SD Bushing QD 1-1/2

Item ID: SD X 108
SD Series QD Bushing, 1-1/2 Bore

UPS SKU: 4903863170926
Bore: 1-1/2

Technical Specification

Part No.: SD
A: 1/2
D: 2.187
OD: 3-3/16
B: 1-5/16
F: 1-1/4
G: 3/16
L: 1-13/16
D1: 2-11/16
hexhead bolt no.: 3
hexhead bolt size: 1/4*1-7/8
d min: 1/2
d max standard keyway: 1-11/16
d max shallow keyway: 1-15/16
Setscrew: 1/4
App. Wt. (lbs): 1.5
