3535 Bushing 1-1/4 bore

Item ID: 3535 X 104

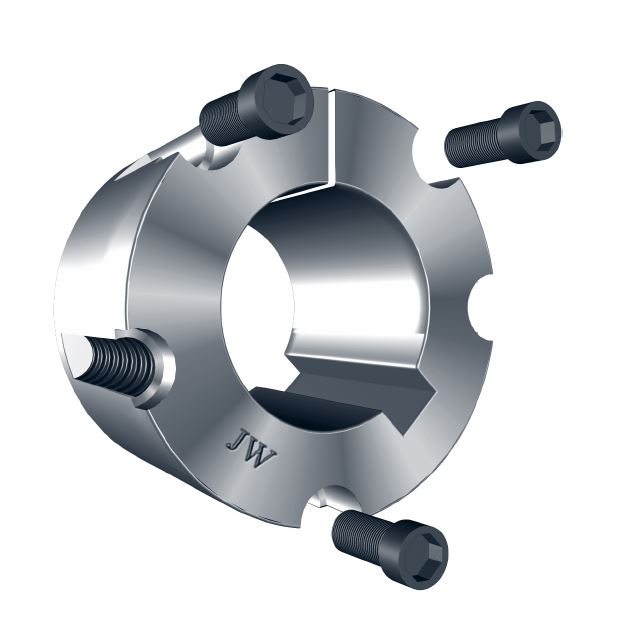

3535 Series Taper Lock Bushing, 1-1/4 Bore

UPS SKU: 4903863137585
Bore: 1-1/4

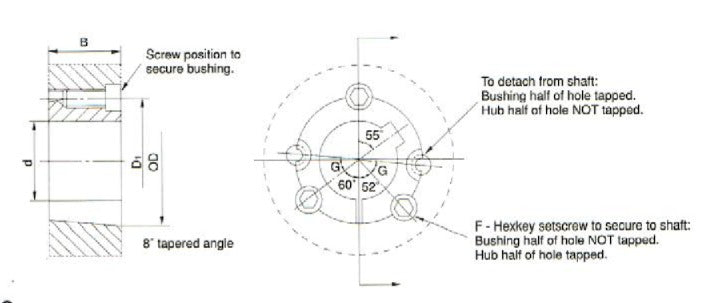

Technical Specification

Part No.: 3535
B: 3.5
OD: 5
min d: 1.188
max d: 3.938
D1: 4.83
F*: 1/2 X 1-1/2
G: 39°
App. Wt. (lbs): 11
