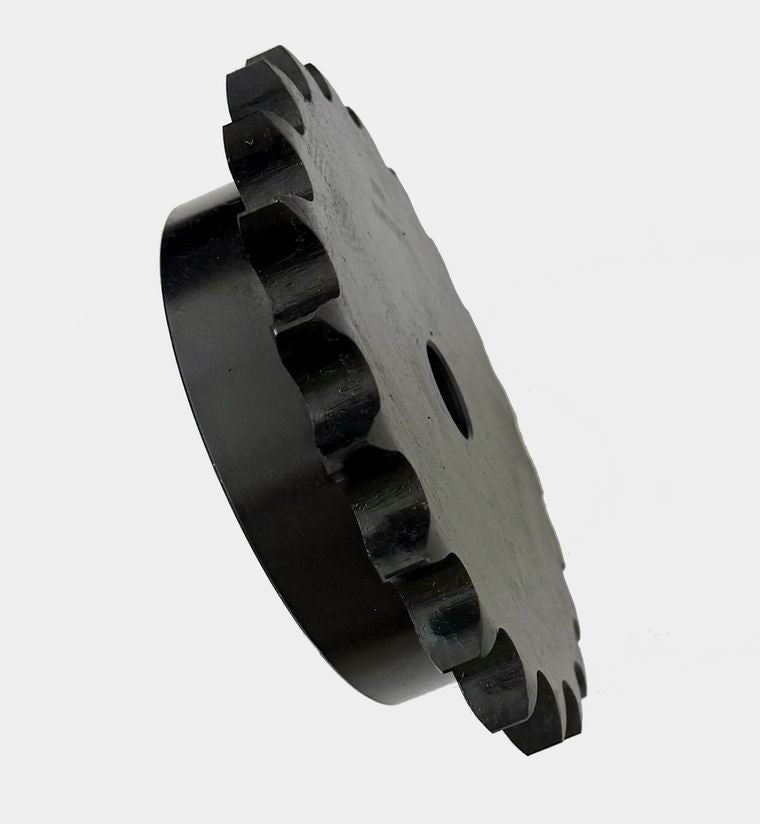

#100 B Hub 10 Teeth

Item ID: 100B10HT
100 Pitch, B Hub, 10 teeth hardened

UPS SKU: 4903863129030
Bore:

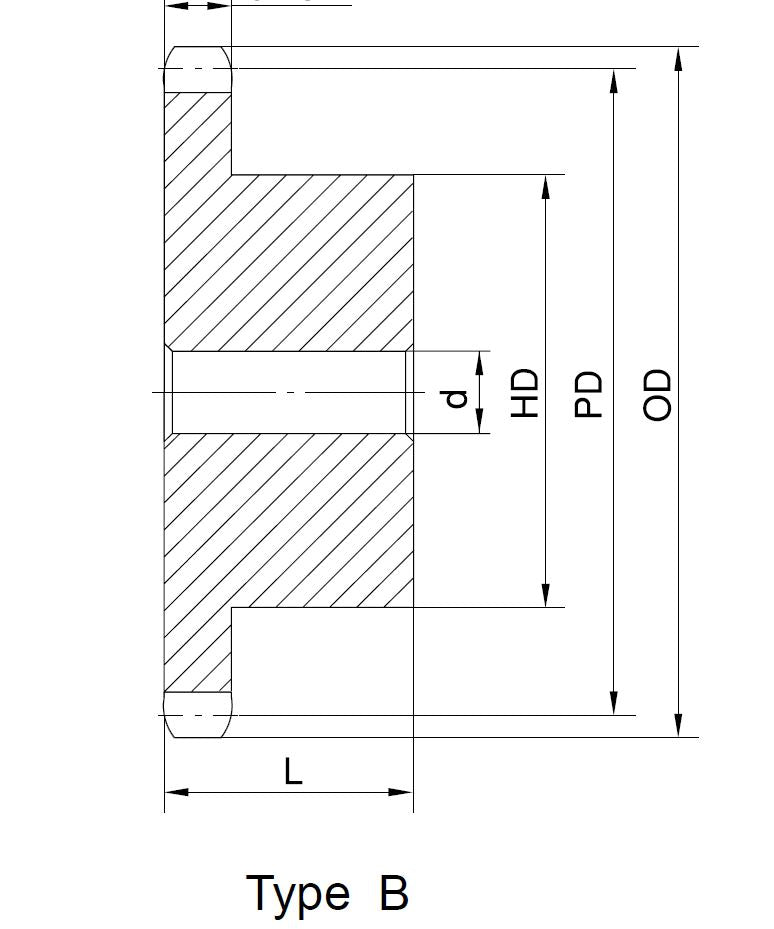

Technical Specification

Part No.: 100B10H
Type: Single Type B
Teeth: 10
OD: 4.600
PD: 4.045
d max: 1-7/8
d min: 1
HD: 3-1/4*
L: 1-7/8
GD: 2.581
App. Wt. (lbs): 4.1
Note: *Hub has recessed groove allowing for chain clearance.
